BRIC® mini Power Distribution Modules

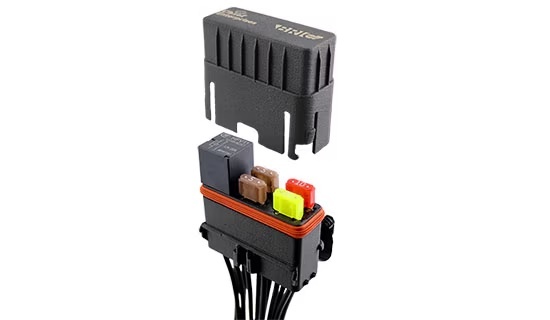

BRIC mini is a compact sealed power distribution module designed for rugged OEM applications where space is limited. It houses plug-in 280 series electrical components including ATM fuses, micro relays, ATM circuit breakers, and similar components.

Looking for the right module?

BRIC Family Selection Guide

Use the selection guide to compare BRIC 280, BRIC Fusion, BRIC Maxi, and BRIC mini options by size, component type, circuit protection needs, and application requirements.

Download the Selection Guide
BRIC module selection guide

BRIC mini Module Series

This family is available with hydrophobic vent, no-vent, long-arm, and rotated cavity options for compact sealed power distribution in agricultural equipment, construction equipment, and powersports applications.

BRIC mini Standard Base

Standard Base

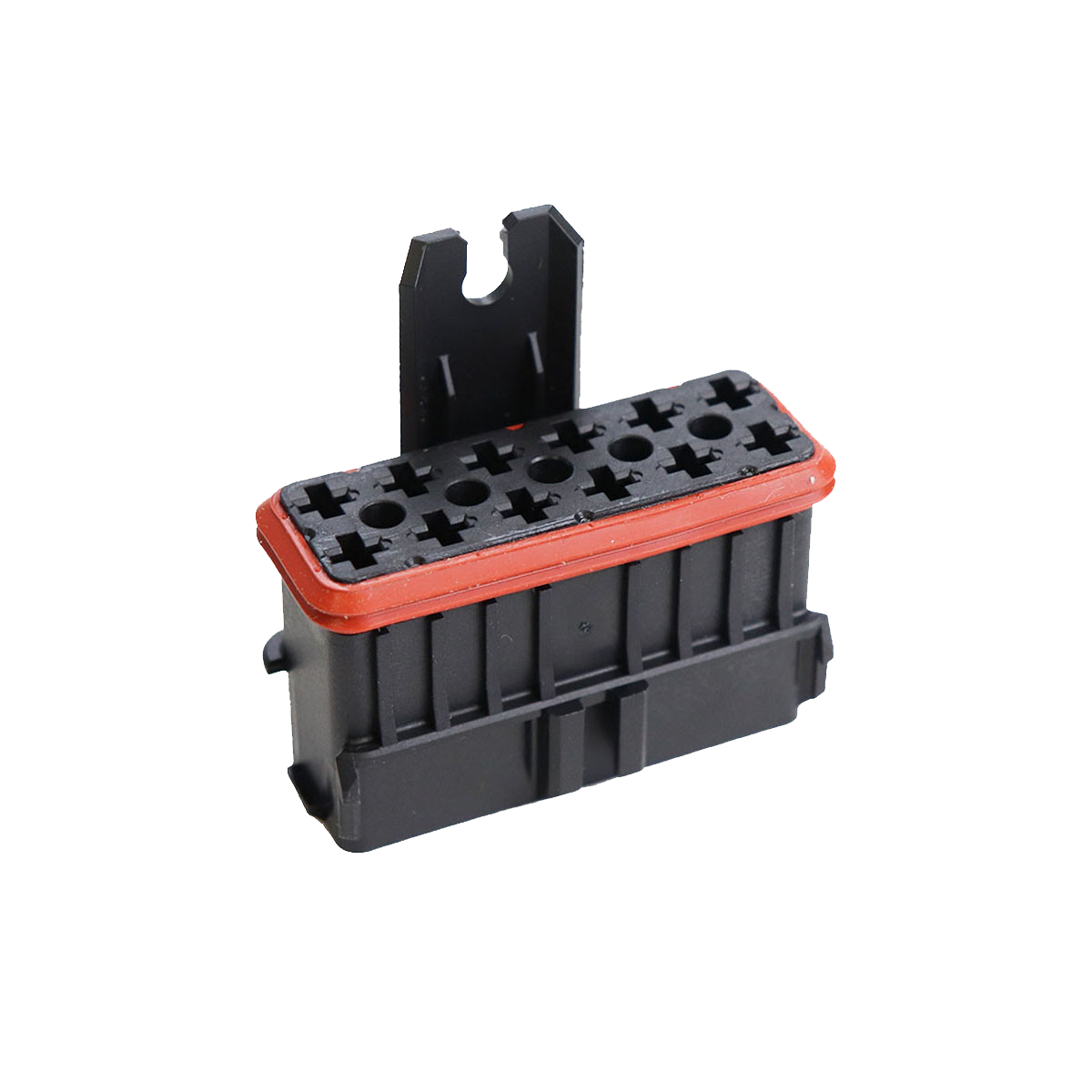

Standard 12-cavity BRIC mini base available with or without hydrophobic vent.

View Product +
Standard Base with Hydrophobic Vent - C2052 Standard Base with No Hydrophobic Vent - C2054 Standard Base with Hydrophobic Vent + Rotated 6 & 12 Cavities - C2056 Standard Base with No Vent + Rotated 6 & 12 Cavities - C2058
BRIC mini Tall Base

Tall Base

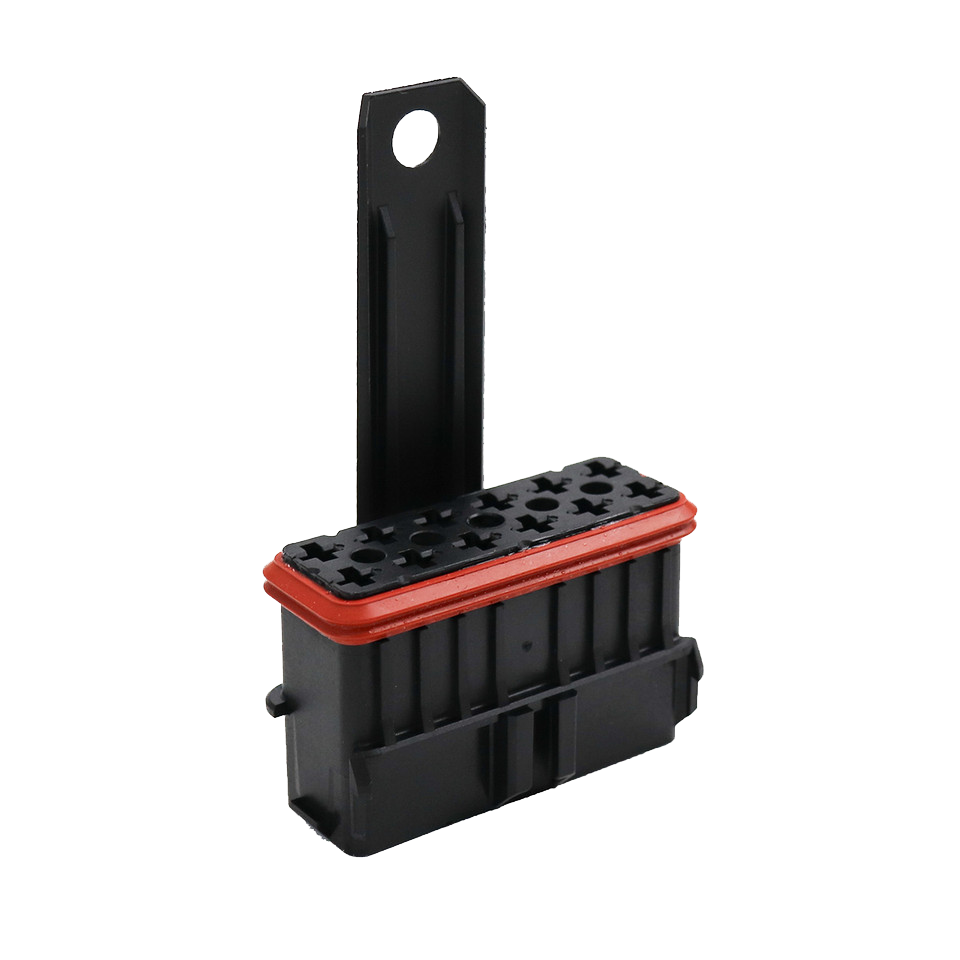

Taller BRIC mini base configuration for applications requiring added packaging clearance.

View Product +
Tall Base with Hydrophobic Vent - C2051 Tall Base with No Hydrophobic Vent - C2053
BRIC mini rotated cavity options

Rotated Cavities

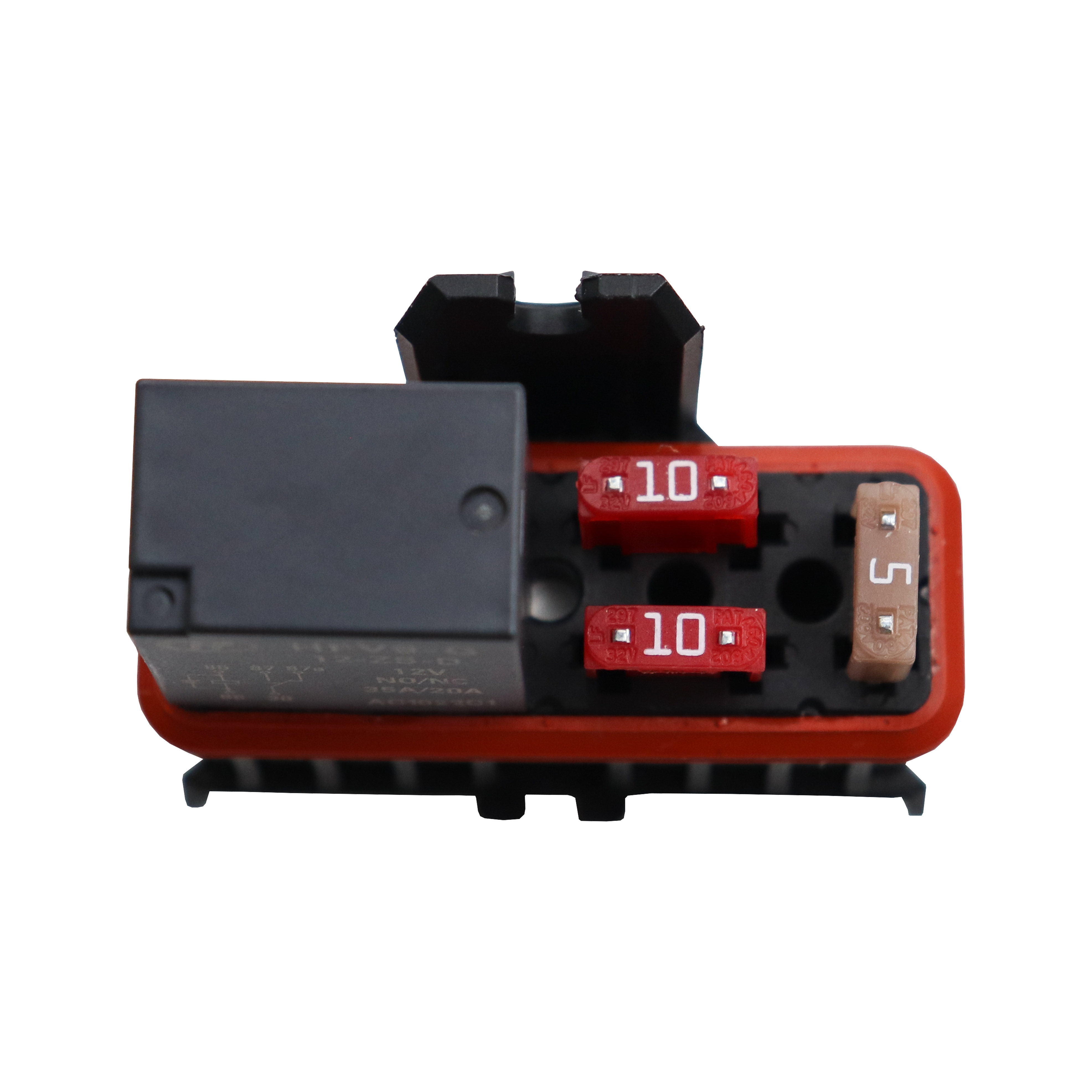

BRIC mini variants with rotated cavities 6 and 12 to improve wire exit orientation and packaging flexibility.

View Products +
Vent + Rotated 6 & 12 Cavities - C2056 No Vent + Rotated 6 & 12 Cavities - C2058
BRIC mini Accessories

Accessories

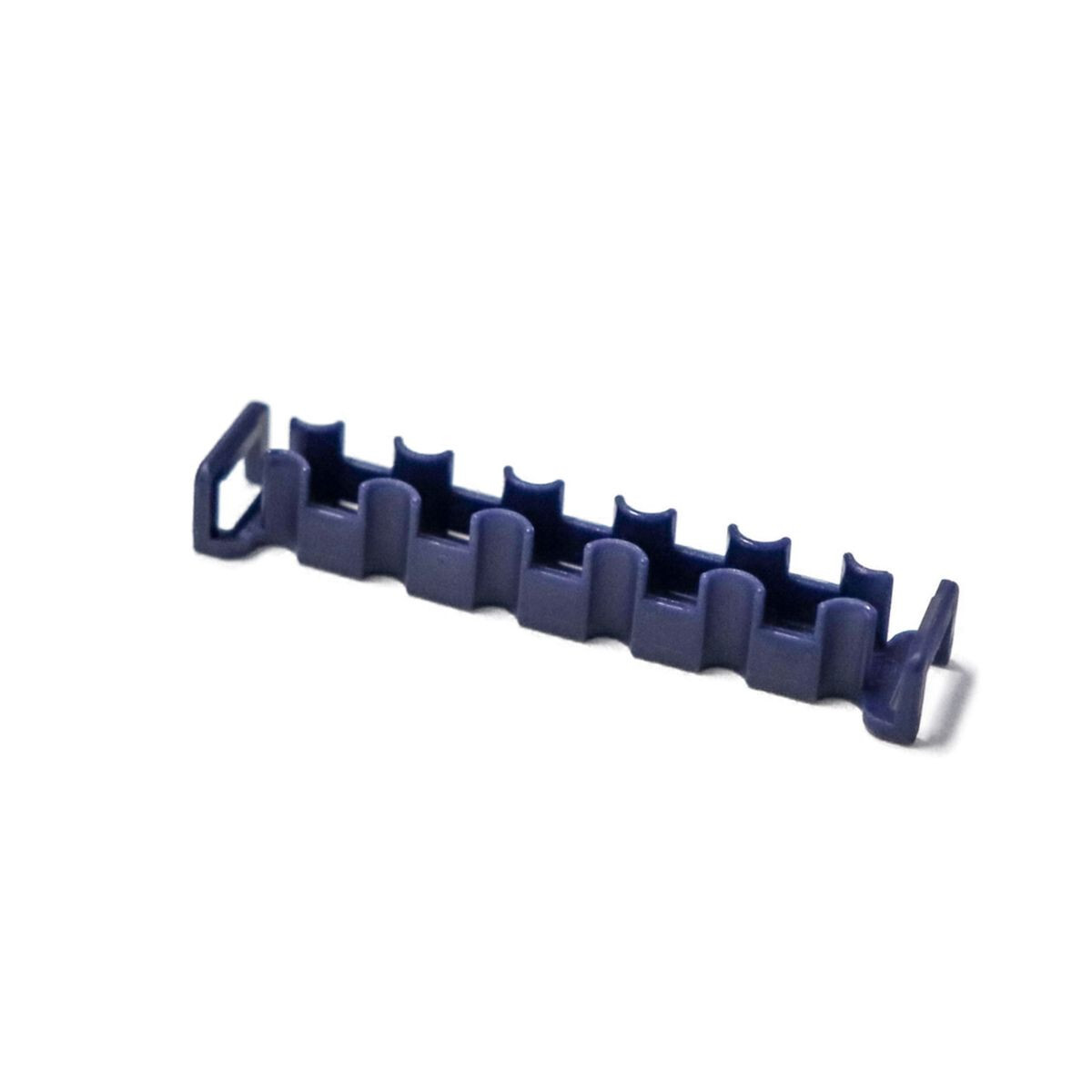

Common accessories for the BRIC mini include covers, TPAs, clips, and tethers.

View Product +
Cover - P908 Low Height Cover - P917 Terminal Position Assurance (TPA) - P952 88mm Tether - P954 110mm Tether - P1034 Aptiv Fir Tree Round Clip - 12110783 Hellermann Fir Tree Oval Clip - 151-01108 ITW Deltar Fir Tree Double Head Clip - 08800309-A03

Explore other BRIC families for larger 280-style layouts, advanced customization, or higher-current power distribution:

BRIC 280  |  BRIC Fusion  |  BRIC Maxi

BRIC mini Dimensions

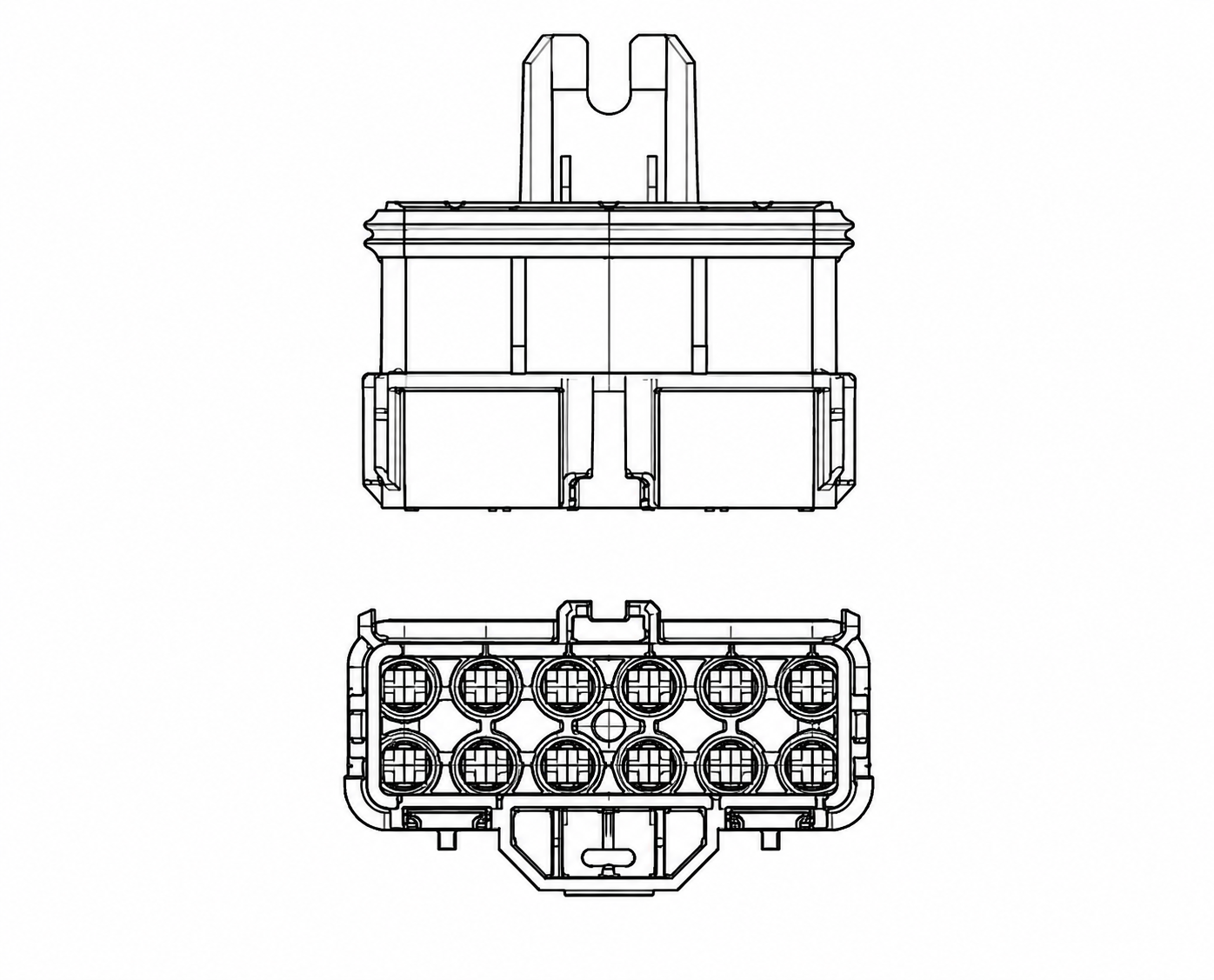

BRIC mini dimensions diagram
Series Width Height Depth
Tall Base 52.4 mm 81.0 mm 28.1 mm
Standard Base 52.4 mm 51.2 mm 28.1 mm

Technical Overview

Product Features

  • Compact 12-cavity sealed footprint
  • Hydrophobic vent and no-vent configurations
  • Standard and special mounting arm options
  • Rotated 6 & 12 cavity options
  • Compatible with labels, laser marking, TPAs, CPAs, and tethers

Electrical Specifications

  • TE MCP 2.8 terminal system
  • Supports ATM fuses, micro relays, and ATM circuit breakers
  • 30A intermittent per terminal
  • 20A continuous per terminal with temperature derating
  • 120A max continuous current per PDM

Performance Specifications

  • IP67 water and dust ingress protection
  • -40°C to +105°C ambient operating temperature
  • 24 AWG to 12 AWG wire range
  • Glass reinforced Nylon 66 body
  • Resistant to most underhood chemicals and UV stable

See It in Action

BRIC Power Distribution Module ▶

BRIC Power Distribution Module

Watch an overview of the BRIC family and its sealed module design.

BRIC High Pressure Wash Testing ▶

BRIC High Pressure Wash Testing

See how the BRIC design performs against rugged environmental testing.

Resources

Engineering documentation for BRIC mini, including application specifications, product catalogs, and product drawings.

Chief-Designed Power Distribution Product Catalog
Download PDF →
BRIC mini Module Application Specification
Download PDF →
BRIC power distribution family
Need more capacity?

Explore the BRIC Family

For applications requiring larger sealed power distribution layouts, explore BRIC 280, BRIC Fusion, and BRIC Maxi platforms.

View BRIC 280

Frequently Asked Questions

What is BRIC mini?

BRIC (Breathable & Robust Interconnection Center) is Chief's family of sealed power distribution modules. BRIC mini is the compact member of the BRIC family, providing sealed power distribution for space-constrained OEM applications using ATM fuses, micro relays, and other 280-series components.

How many cavities does BRIC mini have?

BRIC mini is a 12-cavity sealed module.

What components can BRIC mini house?

BRIC mini supports ATM fuses, micro relays, ATM circuit breakers, and similar 280 series plug-in electrical components.

What applications is BRIC mini designed for?

BRIC mini is commonly used in agricultural equipment, construction equipment, and powersports applications where compact sealed power distribution is needed.

What terminal system does BRIC mini use?

BRIC mini uses the TE MCP 2.8 terminal system.

Is BRIC mini available with a hydrophobic vent?

Yes. BRIC mini bases are available with and without a hydrophobic vent. The vent helps relieve pressure differentials caused by component heating.

What are the rotated cavity versions used for?

Rotated 6 and 12 cavity versions are used to improve wire exit orientation and packaging flexibility in space-constrained applications.

What is the ingress protection rating?

BRIC mini is designed to support IP67 water and dust ingress protection when properly configured and assembled.

What is the maximum current capacity?

BRIC mini supports up to 120A continuous current per PDM, with 30A intermittent and 20A continuous current per terminal subject to temperature derating.

What accessories are available?

Available options include TPA, tether/CPA, custom labels, compatible covers and anti-backout foam.
