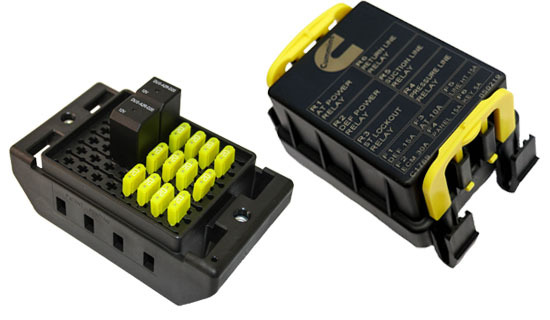

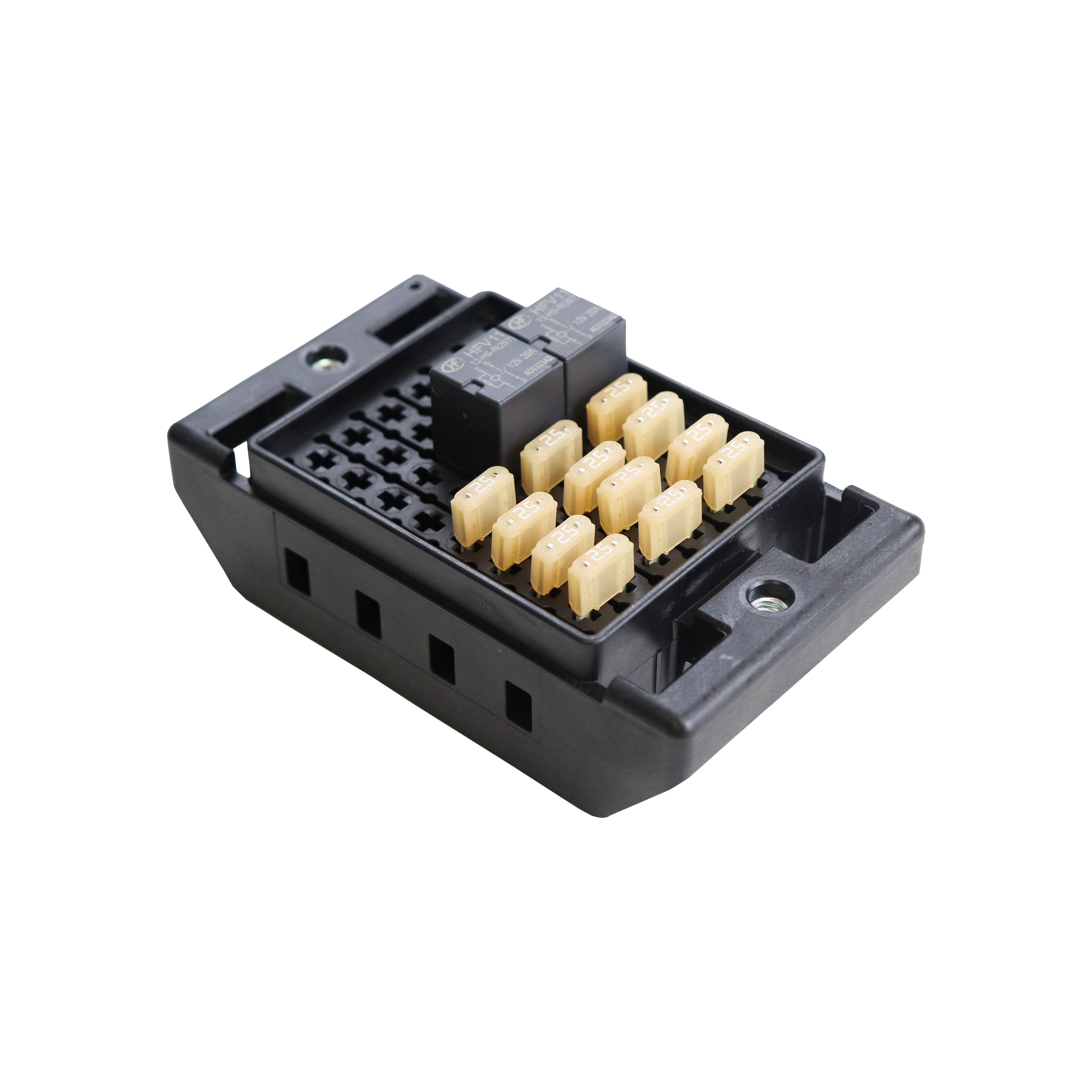

BRIC® Power Distribution Modules
BRIC® 280 Power Distribution Modules
The original BRIC family provides sealed power distribution for on- and off-road OEM applications, supporting critical 280-style components including relays, fuses, circuit breakers, and diodes.

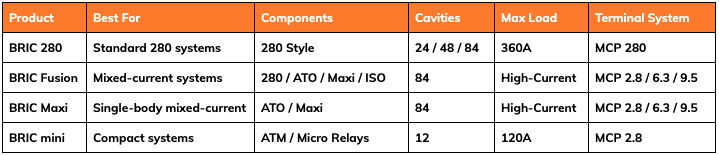

BRIC Family Selection Guide
Use the selection guide to compare BRIC 280, BRIC Fusion, BRIC mini, and BRIC Maxi options by size, circuit protection needs, and application requirements.
Download the Selection Guide
BRIC 280 Family Series
The BRIC 280 is available in 24-way, 48-way, and 84-way configurations for sealed power distribution using 280-style electrical components.

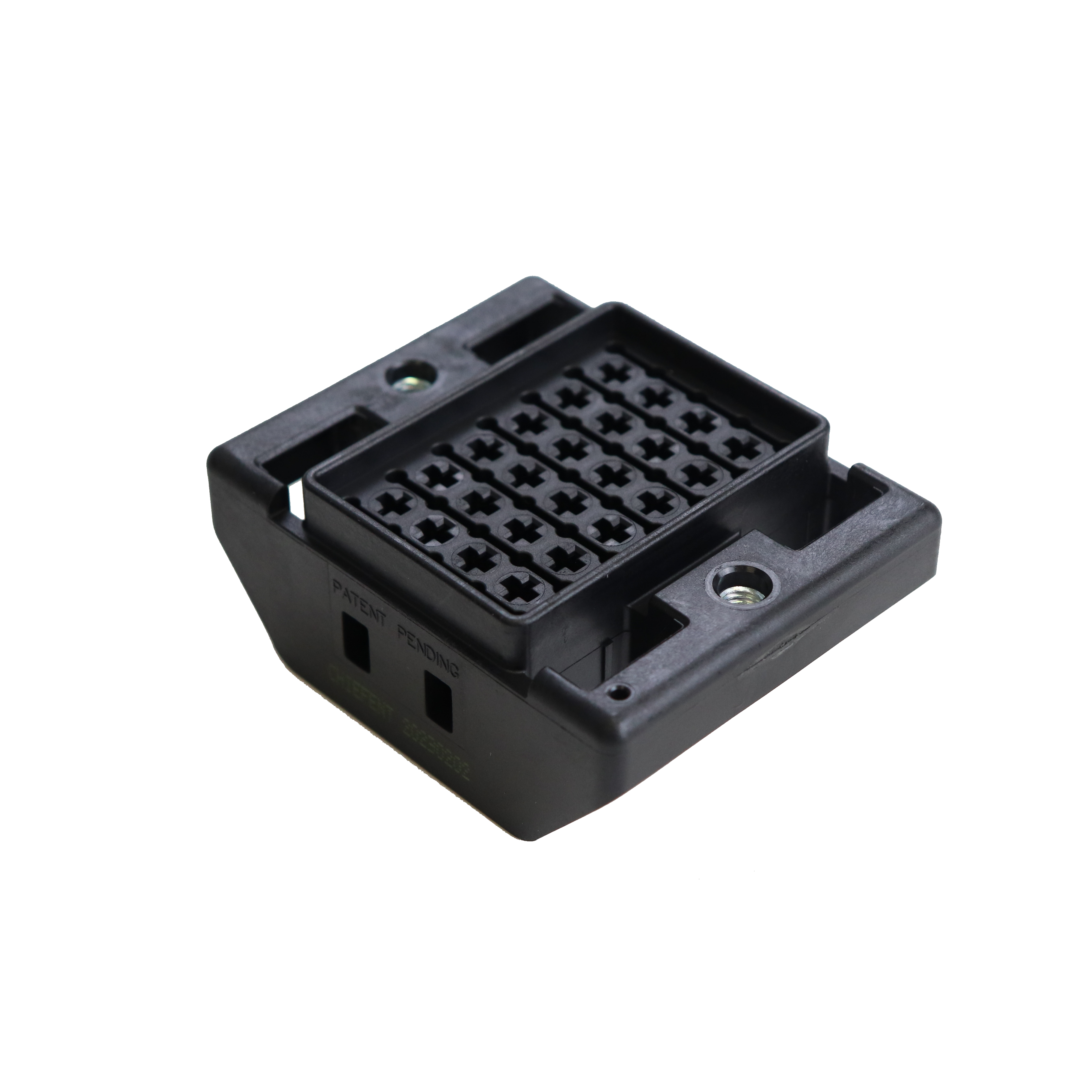

24-WAY MODULE
Compact 24-cavity configuration supporting multiple 280-style relays,
fuses, circuit breakers, and diode configurations for smaller OEM systems.
View Products +

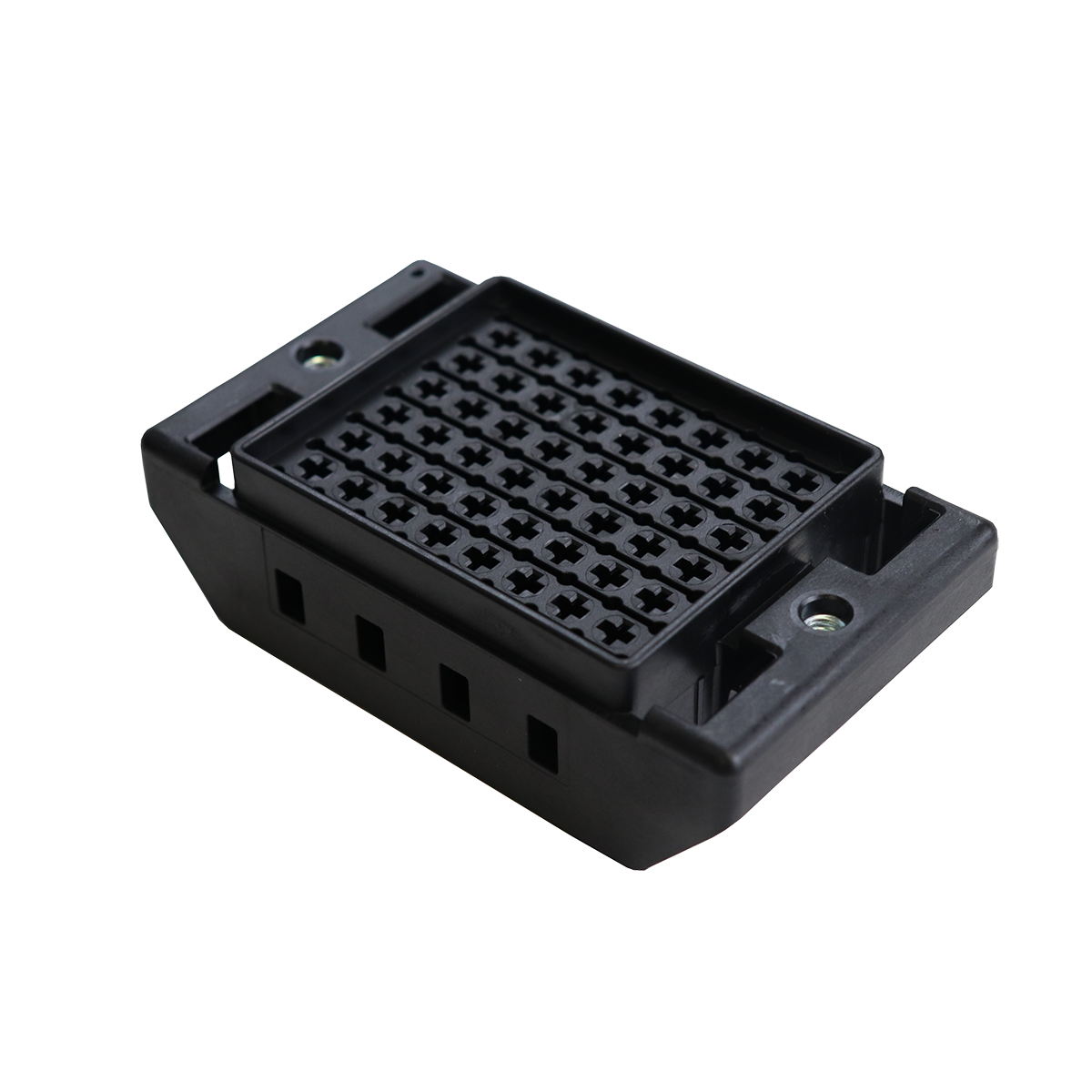

48-WAY MODULE
Mid-size 48-cavity module designed for expanded power distribution
architectures with increased relay and fuse capacity.
View Products +

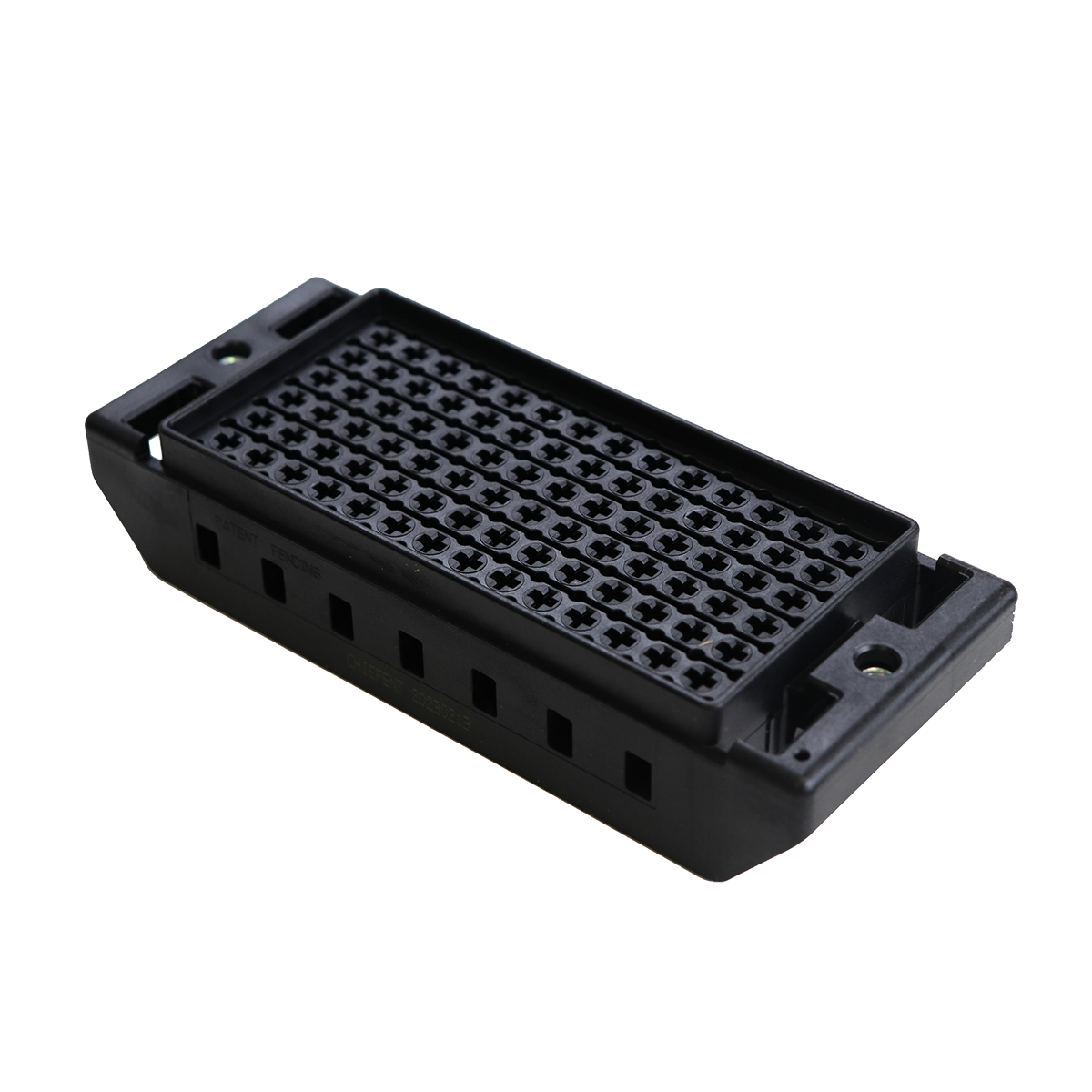

84-WAY MODULE
High-density 84-cavity configuration for complex electrical systems
requiring large quantities of 280-style protected circuits.
View Products +

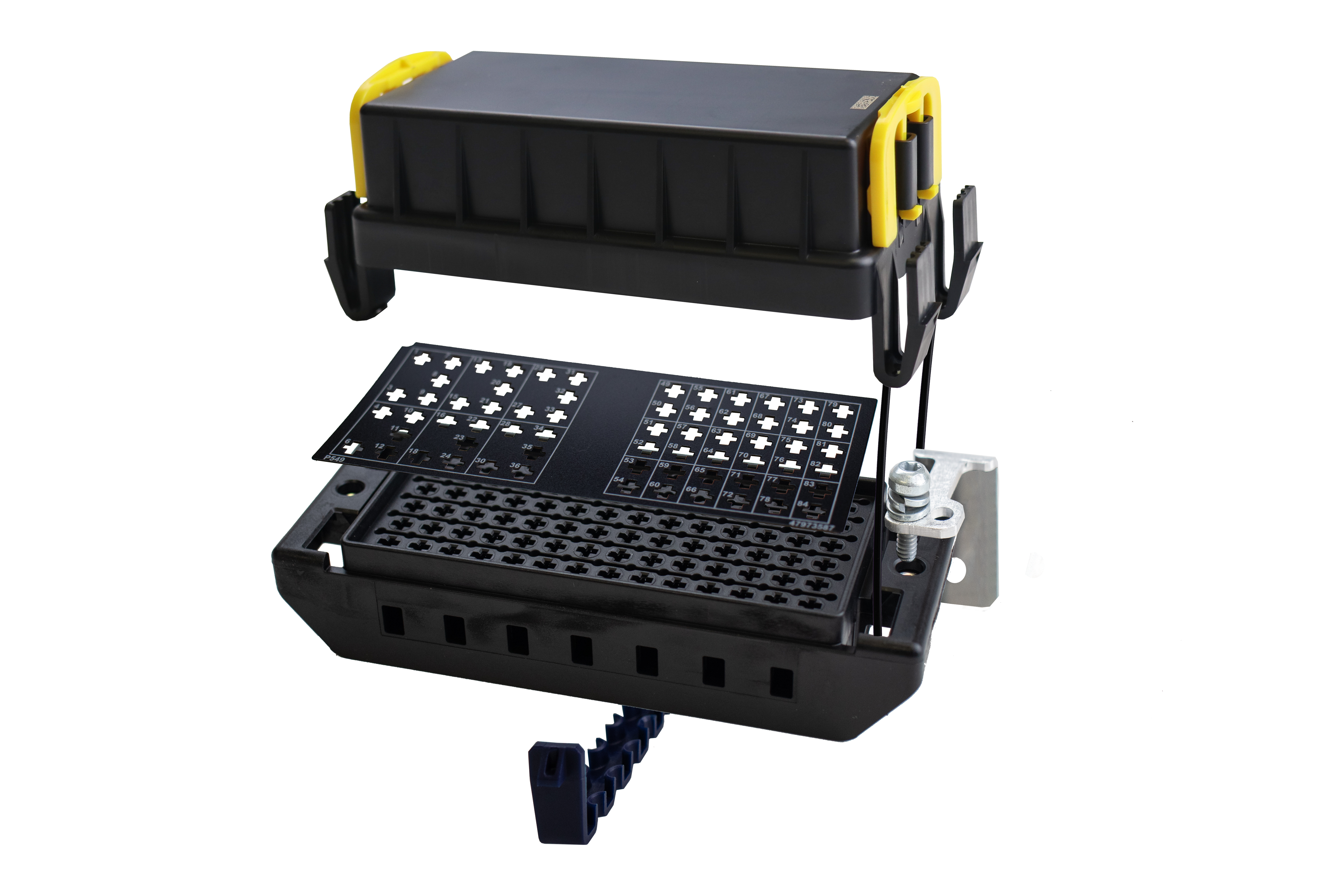

ACCESSORIES
Available accessories include TPAs, CPAs, diode keys, tethers,
side mount brackets, custom labels, and laser marking.
View Products +
Explore BRIC Fusion and Maxi for advanced customization and higher-current applications, or BRIC mini for compact designs:

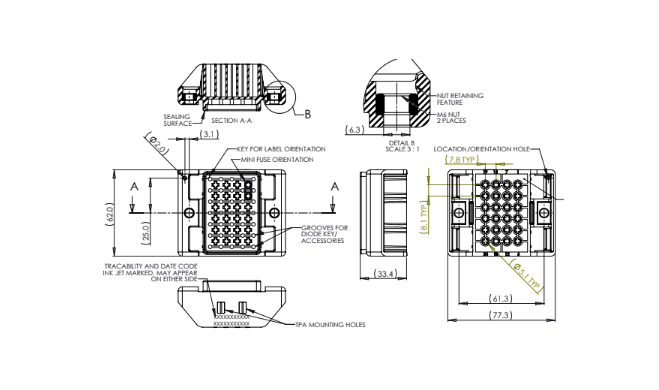

BRIC Fusion | BRIC mini | BRIC MaxiBRIC Series Dimensions
| Series | Width | Height | Depth |
|---|---|---|---|
| 24-Way | 77.3 mm | 62 mm | 65 mm |
| 48-Way | 108.5 mm | 62 mm | 65 mm |
| 84-Way | 155.3 mm | 62 mm | 65 mm |
Technical Overview
Product Features
- IP67 sealed enclosure
- Optional hydrophobic vent
- Silicone compression seal
- Cover position assurance
- One-hand cover release
- Custom laser marking and labels
Electrical Specifications
- Supports relays, fuses, circuit breakers, and diodes
- Up to 360A electrical load
- Diode key and busing connector available
- Designed for OEM power distribution systems
Performance Specifications
- High-impact cover with foam insert
- M6 steel threads for mounting
- Sleek body and compact design
- Meets rigorous OEM testing

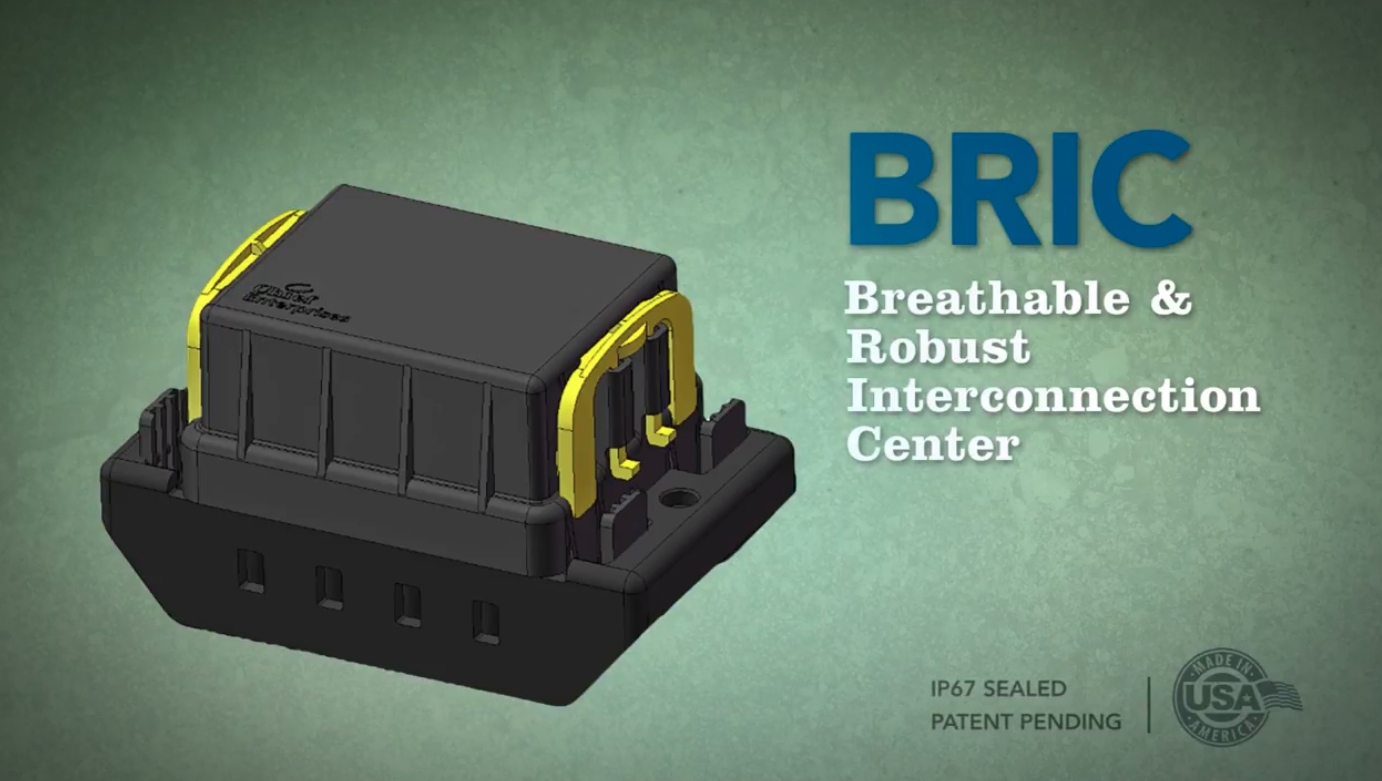

See It in Action
Resources
Engineering documentation for the BRIC family, including module drawings, specifications, and product catalogs.

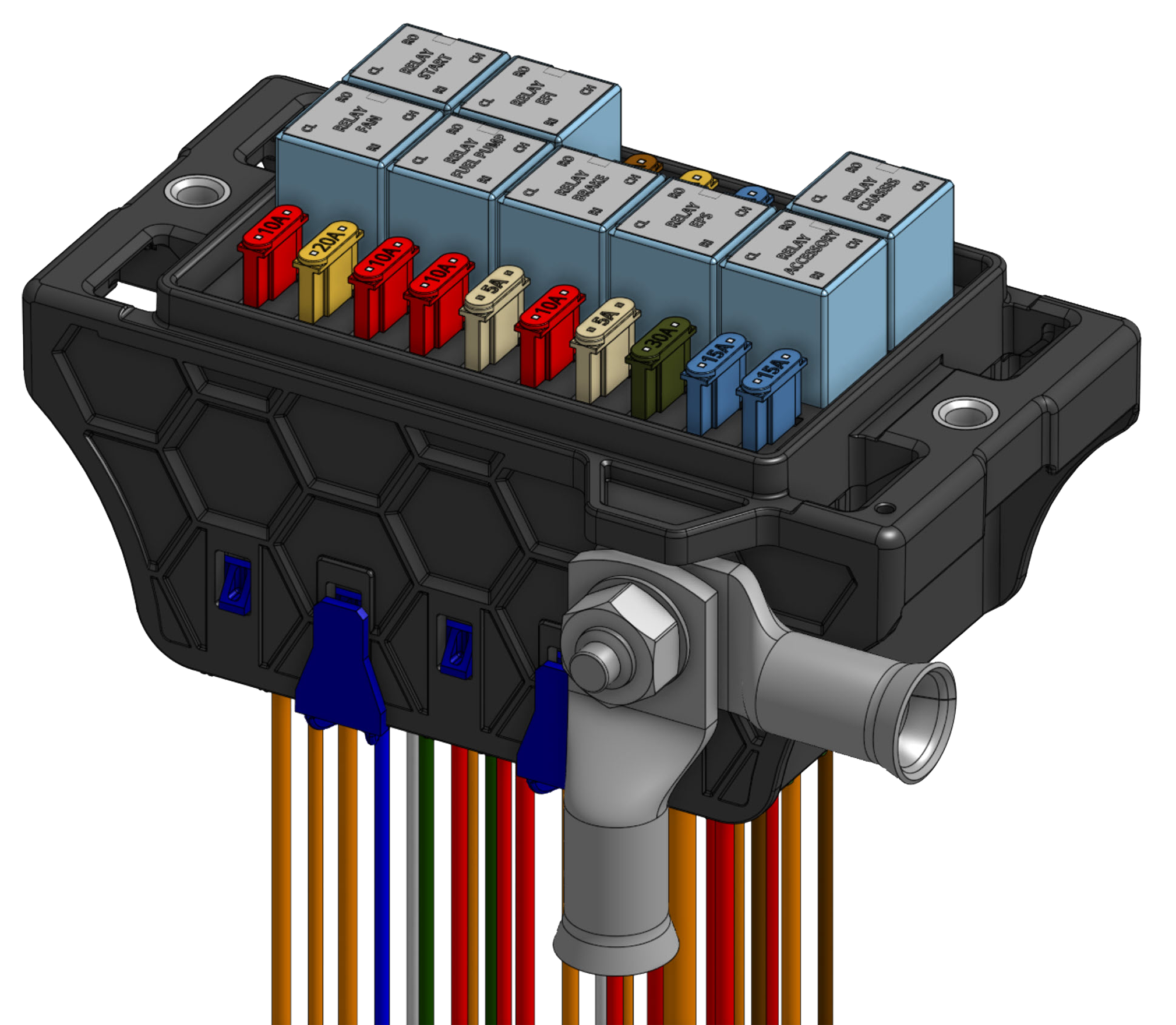

BRIC Gen2 Bused
Internal bused module helps simplify distribution, reduce wiring complexity, and support repetitive OEM assembly. Available in 2027.
Learn MoreFrequently Asked Questions
What is BRIC 280?
BRIC (Breathable & Robust Interconnection Center) is Chief's family of sealed power distribution modules. BRIC 280 is the original BRIC platform, designed around 280-style electrical components such as relays, fuses, circuit breakers, and diodes for rugged OEM power distribution applications.
What module sizes are available?
The original BRIC 280 family is available in:
- 24-Way
- 48-Way
- 84-Way
What applications are BRIC modules used for?
BRIC modules are used in agricultural equipment, construction equipment, powersports, heavy-duty trucks, RVs, marine, power generation, and specialty vehicles.
What electrical components can BRIC modules house?
Standard BRIC® 280 Series Power Distribution Modules are designed for 280-style plug-in electrical components in a sealed chamber, including:
- Fuses
- Relays
- Circuit breakers
- Diodes
- Other similar 280-style plug-in electrical components
Can BRIC modules be customized?
Yes. BRIC modules can support options such as laser marking, labels, busing, brackets, tethers, CPA locks, TPAs, diode keys, and configuration support.
What is the ingress protection rating?
When properly configured, BRIC modules are designed for sealed power distribution applications and can support IP67 water and dust ingress protection.
What is the maximum current capacity?
Specifications include:
- 30A intermittent per terminal
- 20A continuous per terminal
- Up to 360A continuous per module with vent
- Up to 300A continuous without vent
What wire sizes are supported?
The BRIC 280 family supports 24 AWG to 12 AWG depending on terminal system and application.
How is the module mounted?
The module is designed to mount using:
- Two integrated M6 mounting points
- Recommended mounting torque of approximately 6–7 Nm

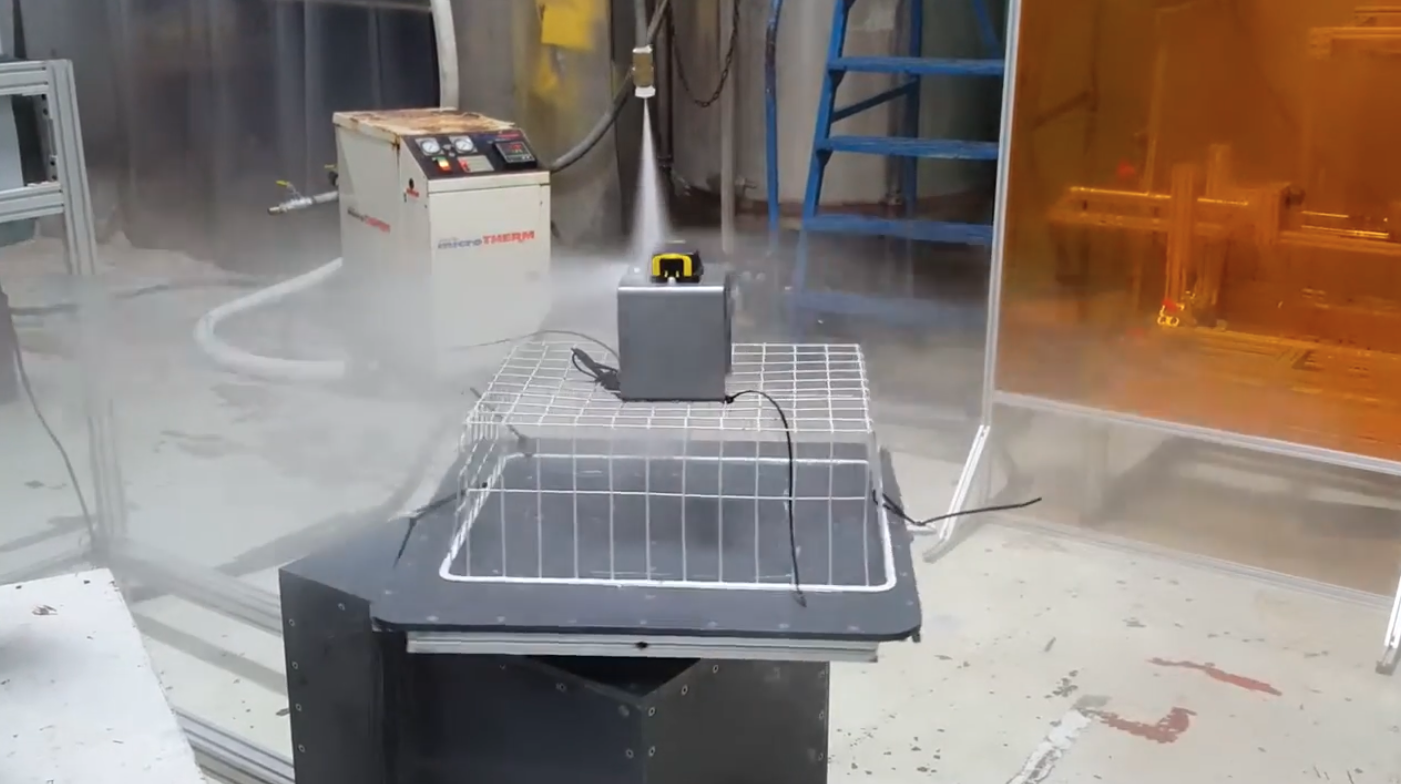

What testing has the BRIC passed?
Validation testing includes:
- Temperature cycling
- HALT vibration testing
- Salt spray
- UV exposure
- Chemical resistance
- IP67 ingress testing
- Gravel impact simulation
- Drop testing
Ready to spec a BRIC into your next program?
Contact Chief’s engineering team to review your power distribution requirements.
