BRIC® Fusion Power Distribution Modules

BRIC Fusion provides configurable sealed power distribution by combining modular inserts into a single environmentally sealed base. Fusion supports mixed-current architectures using 280-style, ATO, ISO relay, Maxi Fuse, and Maxi Combo configurations.

Looking for the right module?

BRIC Family Selection Guide

Compare BRIC 280, BRIC Fusion, BRIC Maxi, and BRIC mini options by footprint, current requirements, component type, and application needs.

Download the Selection Guide
BRIC module selection guide

BRIC Fusion Configurations

BRIC Fusion uses modular welded inserts to create mixed-component sealed power distribution layouts. Choose from 280, ATO, ISO Relay, Maxi Fuse, and Maxi Combo configurations.

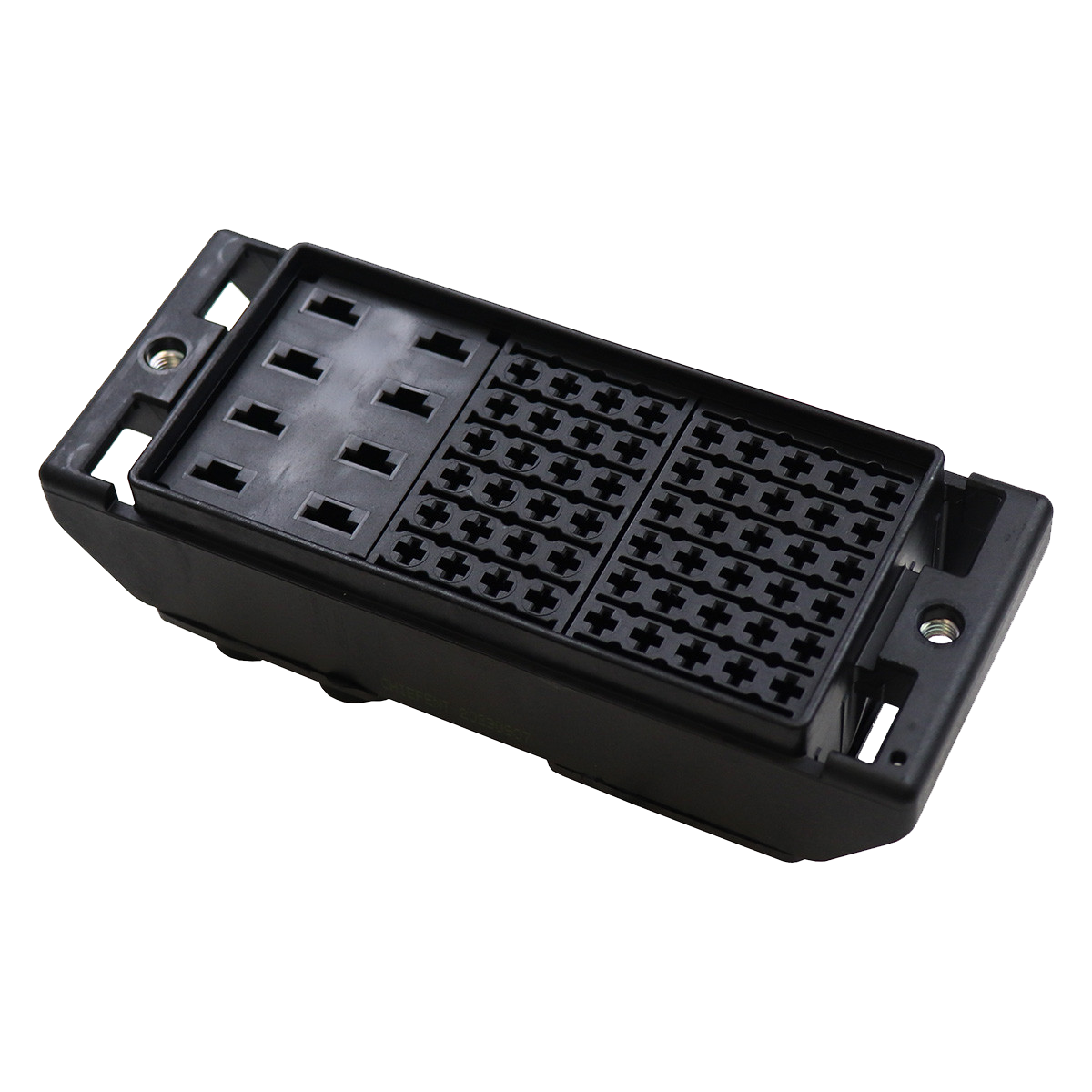

BRIC Fusion 280 configurations

280 Configurations

Fusion layouts housing 280-style components with Maxi Combo, Maxi Fuse, ATO, and ISO Relay footprints.

View Products +
280 x ATO x 280 - C1107 Maxi Fuse x 280 x Maxi Combo - C1165 Maxi Combo x 280 x Maxi Combo - C1179 280 x 280 x ISO Relay - C1234 Maxi Combo x 280 x ISO Relay - C1235 Maxi Fuse x 280 x Maxi Fuse - C1236 Maxi Fuse x 280 x ISO Relay - C1237 ISO Relay x 280 x ISO Relay - C1238 280 x ATO x ISO Relay - C1241 280 x 280 x ISO Relay - C1372

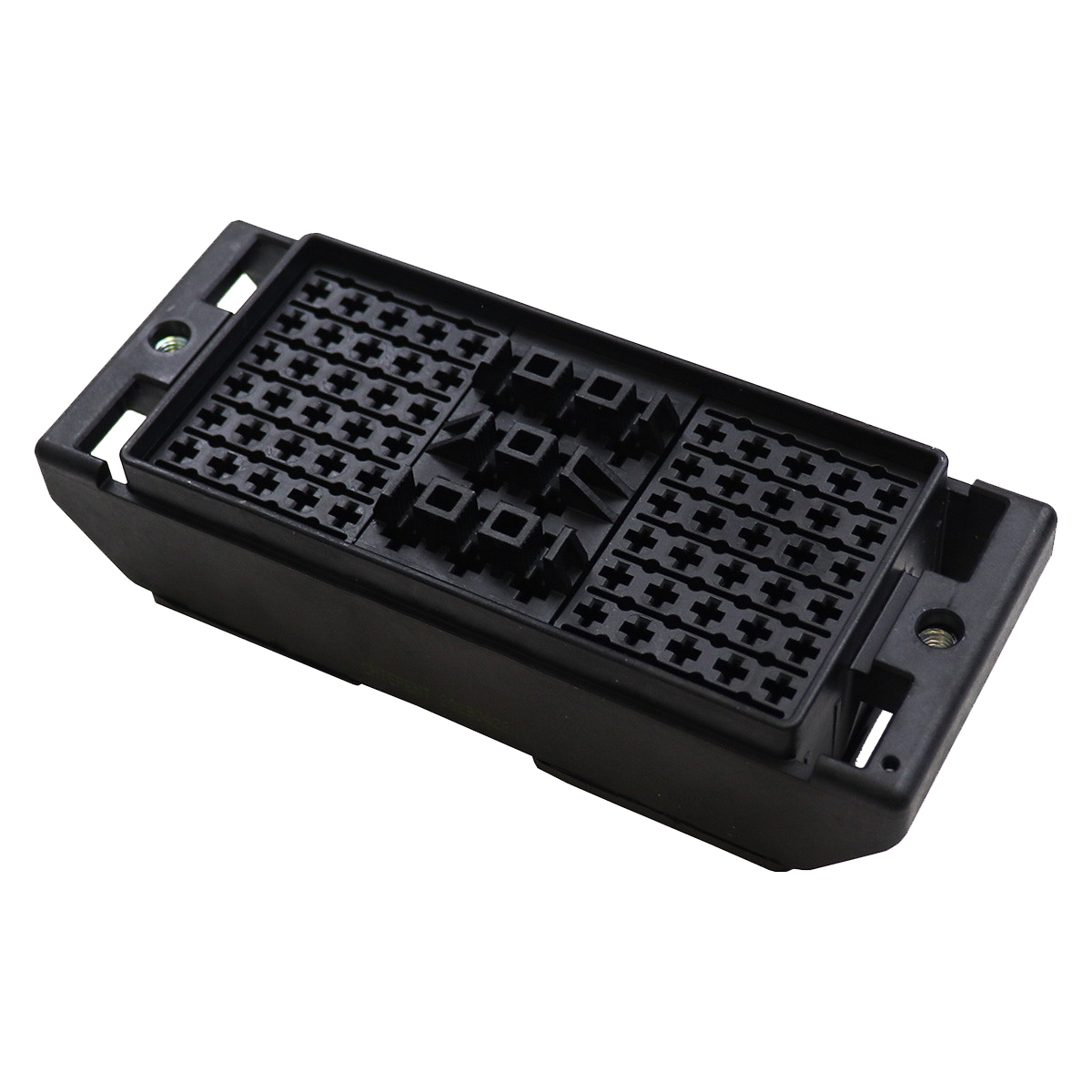

BRIC Fusion ATO configurations

ATO Configurations

Fusion layouts for ATO fuse positions mixed with 280-style, Maxi combo, or relay configurations.

View Products +
280 x ATO x 280 - C1107 280 x ATO x ISO Relay - C1241 Maxi Combo x ATO x ISO Relay - C1244

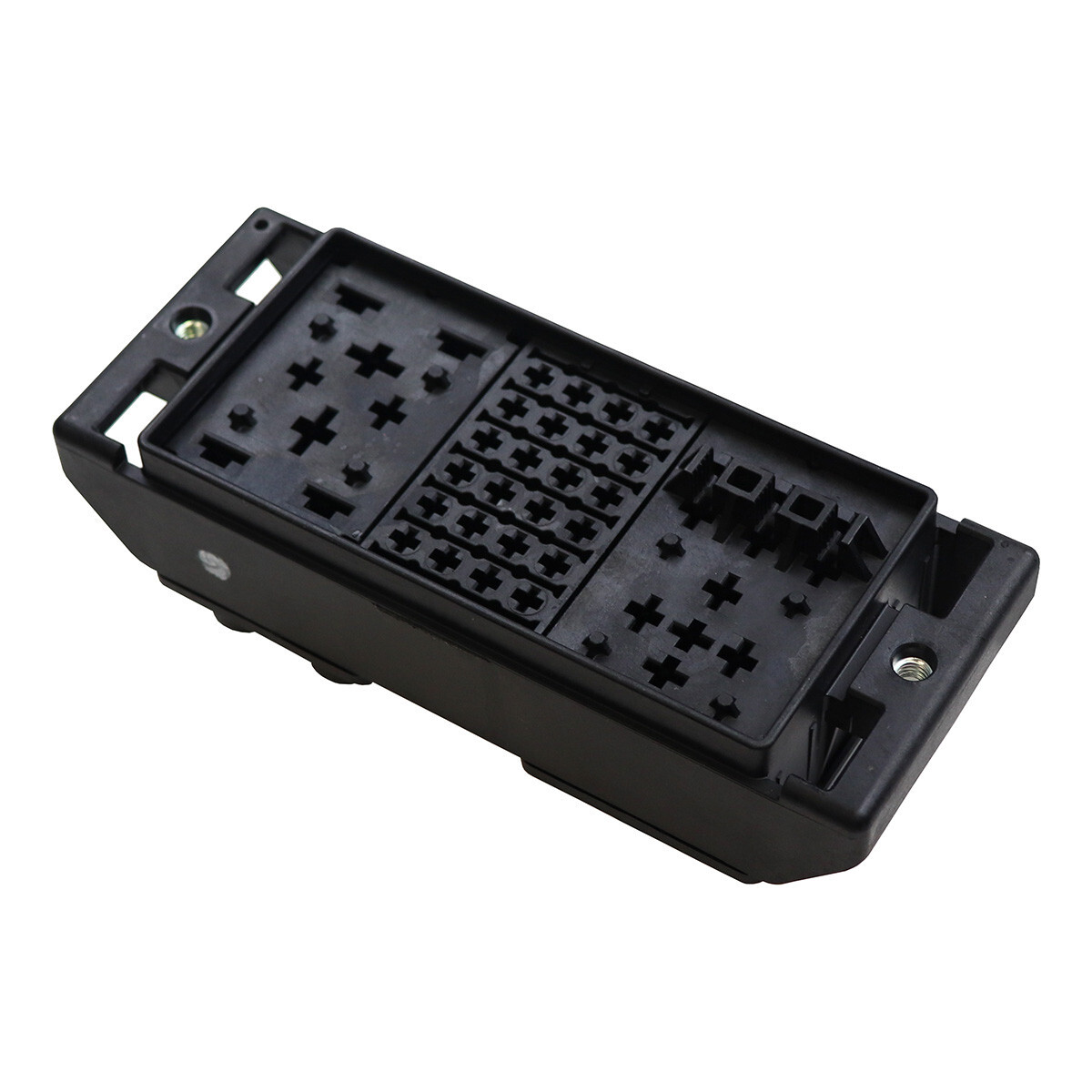

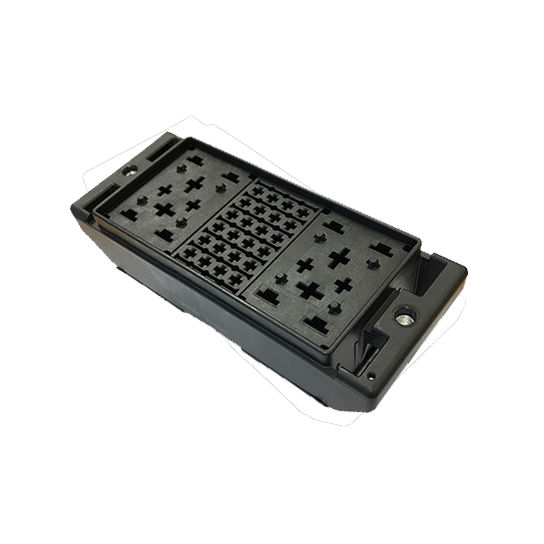

BRIC Fusion Maxi Combo configurations

Maxi Combo Configurations

Fusion layouts using Maxi Combo sections combined with 280, ATO, and ISO Relay.

View Products +
Maxi Combo x 280 x Maxi Combo - C1179 Maxi Combo x 280 x ISO Relay - C1235 Maxi Combo x ATO x ISO Relay - C1244

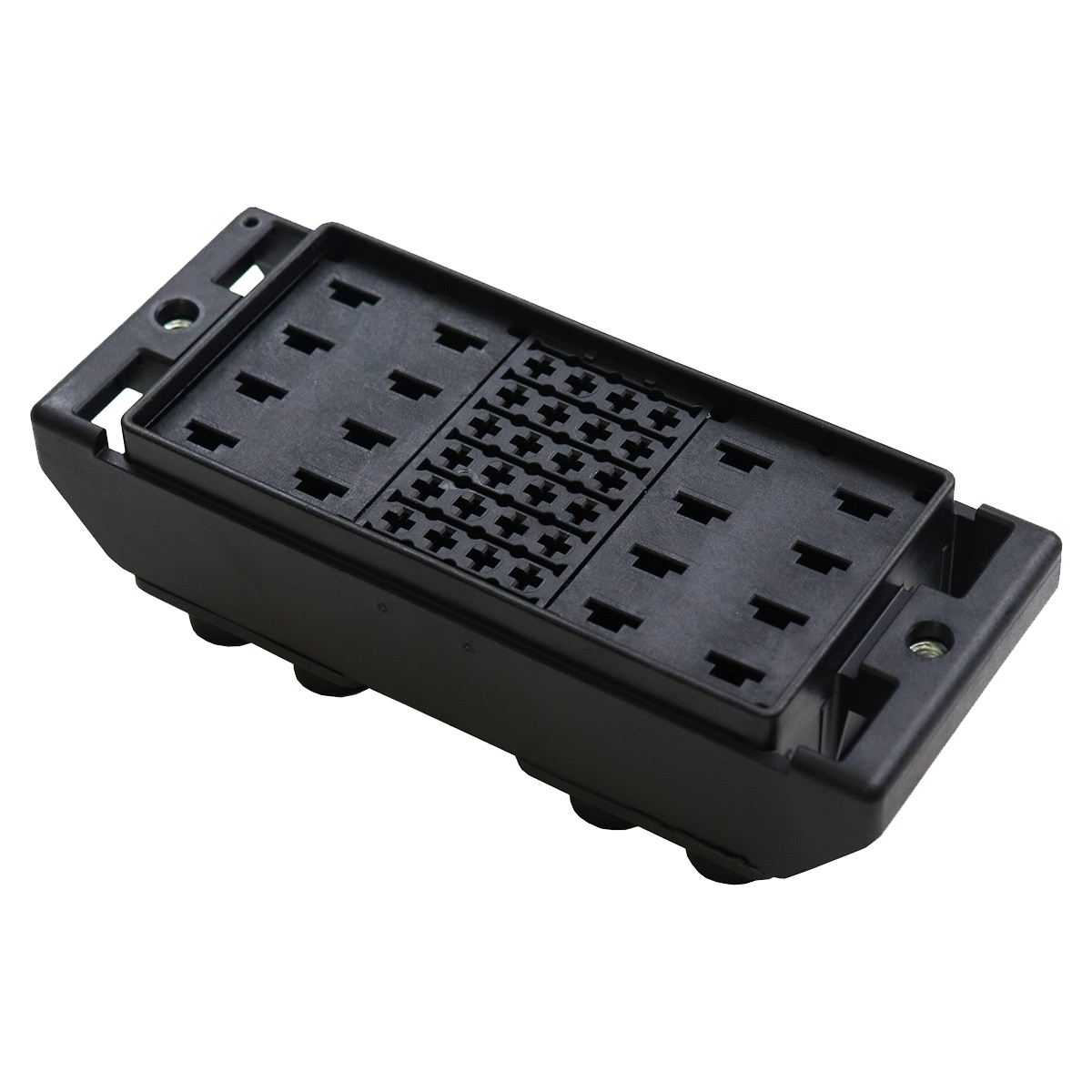

BRIC Fusion Maxi Fuse configurations

Maxi Fuse Configurations

Fusion layouts supporting Maxi Fuse sections mixed with Maxi Combo, 280, & ISO Relays.

View Products +
Maxi Fuse x 280 x Maxi Combo - C1165 Maxi Fuse x 280 x Maxi Fuse - C1236 Maxi Fuse x 280 x ISO Relay - C1237

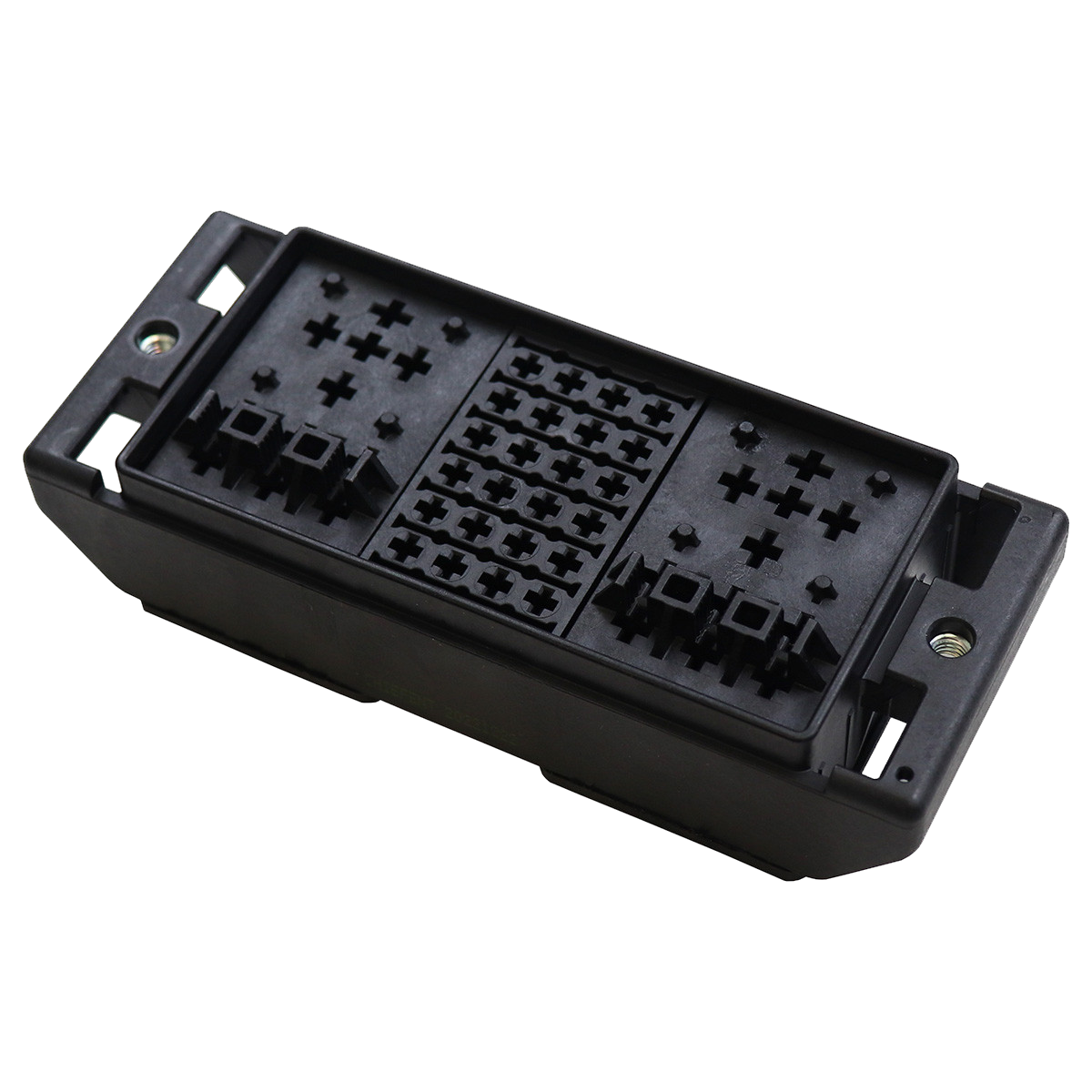

BRIC Fusion ISO Relay configurations

ISO Relay Configurations

Fusion layouts combining ISO relay with ATO and 280-style configurations.

View Products +
280 x 280 x ISO Relay - C1234 ISO Relay x 280 x ISO Relay - C1238 ISO Relay x ATO x ISO Relay - C1247 280 x 280 x ISO Relay - C1372

Explore other BRIC families for fixed 280-style layouts, single-body Maxi designs, or compact applications:

BRIC 280  |  BRIC Maxi  |  BRIC mini

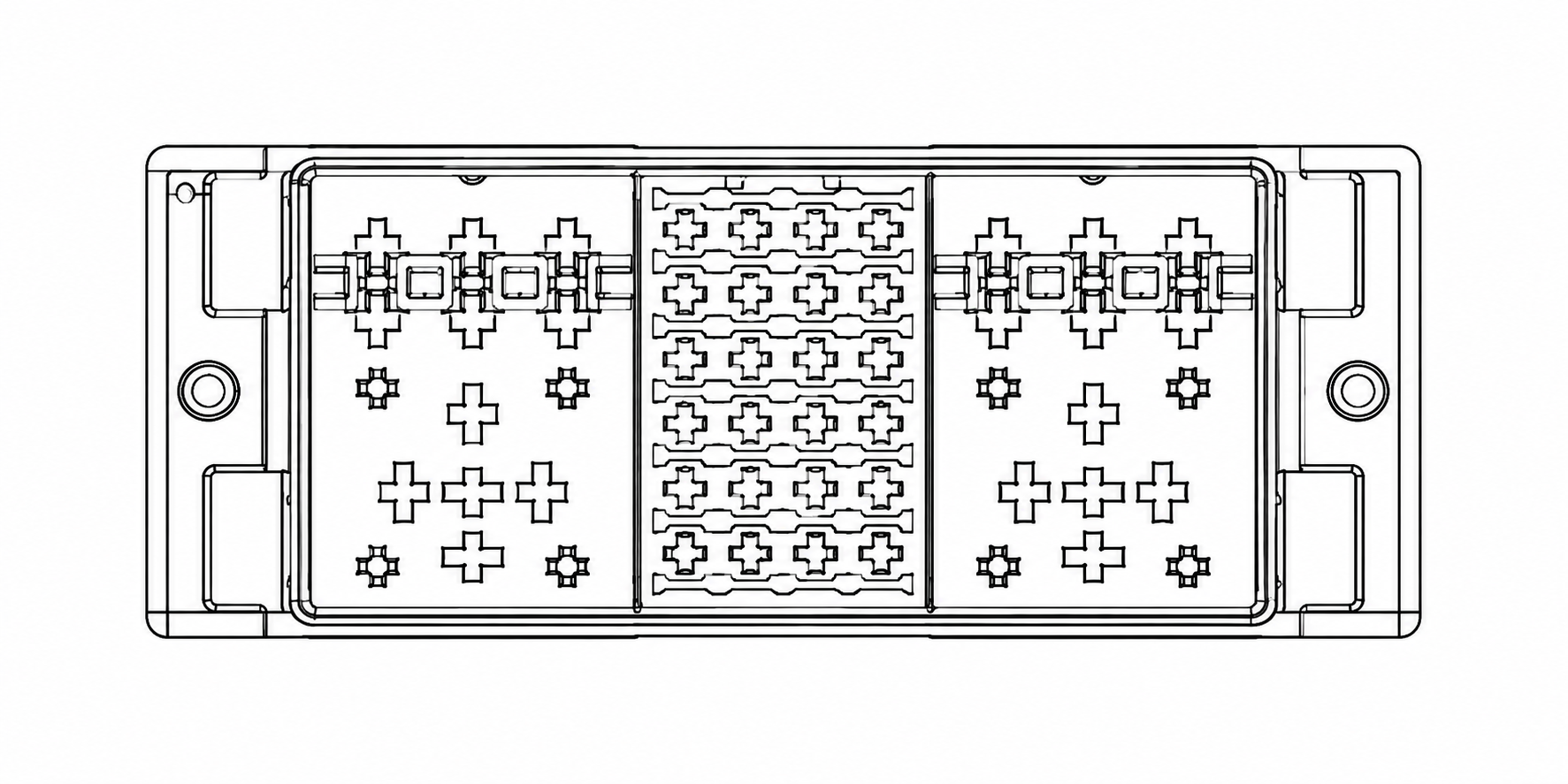

BRIC Fusion Dimensions

BRIC Fusion dimensions diagram
Series Width Height Depth
84-Way 155.3 mm 62 mm 65 mm

Technical Overview

Product Features

  • Configurable sealed Fusion architecture
  • Sonic-welded modular inserts
  • Compatible with BRIC large covers
  • Optional hydrophobic vent
  • CPA, TPA, labels, tethers, and laser marking options

Electrical Specifications

  • Supports 280, ATO, ISO Relay, Maxi Fuse, and Maxi Combo layouts
  • TE MCP 2.8, MCP 6.3, MCP 9.5, and Delphi MetriPack options
  • 30A intermittent per terminal
  • 20A continuous per terminal with temperature derating
  • Up to 360A continuous per PDM with vent

Performance Specifications

  • IP67 water and dust ingress protection when properly assembled
  • M6 steel thread mounting points
  • Glass reinforced PBT body material
  • Silicone sealing system
  • Validated for rugged OEM applications

See It in Action

BRIC Power Distribution Module ▶

BRIC Power Distribution Module

Watch an overview of the BRIC family and sealed module design.
BRIC High Pressure Wash Testing ▶

BRIC High Pressure Wash Testing

See how the BRIC design performs against rugged environmental testing.

Resources

Engineering documentation for BRIC Fusion, including application specifications, product catalogs, and drawings.

Chief-Designed Power Distribution Product Catalog
Download PDF →
BRIC 280 & Fusion Modules Application Specification
Download PDF →
BRIC Family Drawings 2D Drawings
Download PDF →
Laser Marking Guidelines
Download PDF →
BRIC Gen2 Bused
New Product Highlight

BRIC Gen2 Bused

Internal bused module designed to simplify power distribution, reduce wiring complexity, and improve repetitive OEM assembly efficiency. Available in 2027.

Learn More

Frequently Asked Questions

What is BRIC Fusion?

BRIC (Breathable & Robust Interconnection Center) is Chief's family of sealed power distribution modules designed for OEM applications. BRIC Fusion is the configurable member of the BRIC family, using modular inserts that are sonic-welded into a sealed base to support combinations of 280-style, ATO, ISO relay, Maxi Fuse, and Maxi Combo components within a single power distribution module.

What components can BRIC Fusion support?

BRIC Fusion supports 280-style components, ATO fuses, ISO relays, Maxi Fuse sections, Maxi Combo sections, circuit breakers, diodes, and similar plug-in electrical components.

What applications can BRIC Fusion be used for?

BRIC Fusions are used in agricultural equipment, construction equipment, powersports, heavy-duty trucks, RVs, marine, power generation, and specialty vehicles.

Can BRIC Fusion modules be customized?

Yes. BRIC Fusion modules can support options such as laser marking, labels, busing, brackets, tethers, CPA locks, TPAs, diode keys, and configuration support.

How is BRIC Fusion different from BRIC 280?

BRIC 280 uses fixed 280-style layouts, while BRIC Fusion supports mixed-current, mixed-component configurations through modular insert combinations.

What terminal systems are used in BRIC Fusion?

Depending on configuration, BRIC Fusion can use TE MCP 2.8, TE MCP 6.3, TE MCP 9.5, and Delphi MetriPack 800 terminal systems.

What is the ingress protection rating?

When properly configured with compatible cover, seal, and locking components, BRIC Fusion supports IP67 water and dust ingress protection.

What is the maximum current capacity?

BRIC modules support up to 360A continuous current per PDM with vent and up to 300A continuous current per PDM without vent, with application-specific temperature derating.

What accessories are available?

Accessories include CPAs, TPAs, tethers, diode keys, universal brackets, labels, laser marking, seals, and hydrophobic vent options.

Ready to spec BRIC Fusion into your next program?

Contact Chief’s engineering team to review your power distribution requirements.
