BRIC® Maxi Power Distribution Modules
BRIC® Maxi Power Distribution Modules

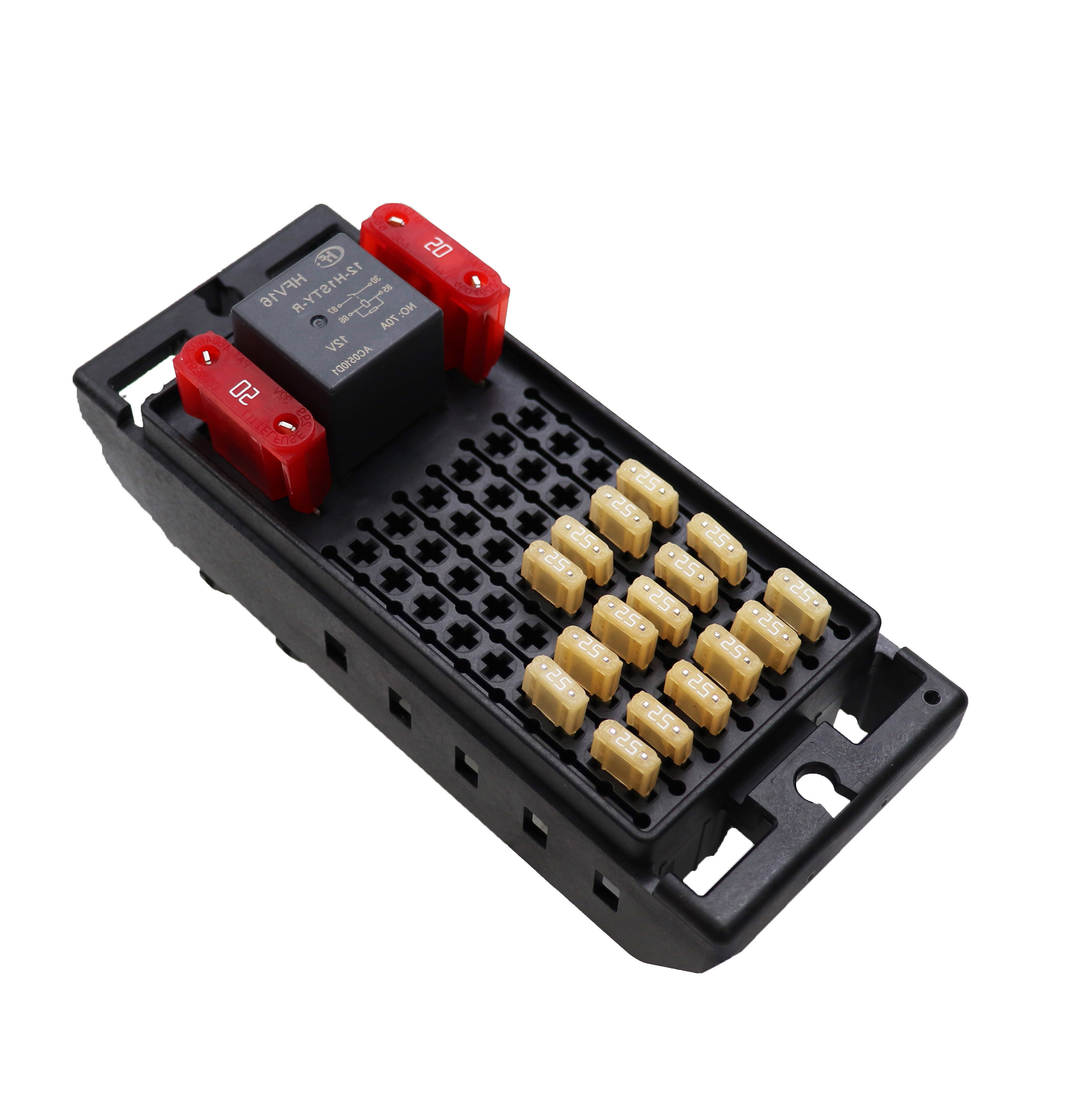

BRIC Maxi is a streamlined single-body version of Chief’s most popular BRIC Fusion configurations. Designed to reduce production assembly time, BRIC Maxi supports rugged sealed power distribution using Maxi Combo, Maxi Fuse, ATO, and 280-style component architectures.
BRIC Family Selection Guide
Use the selection guide to compare BRIC 280, BRIC Fusion, BRIC Maxi, and BRIC mini options by size, component type, circuit protection needs, and application requirements.
Download the Selection Guide
BRIC Maxi Module Series
BRIC Maxi uses a single-body architecture to streamline production compared to insert-based BRIC Fusion modules. The Maxi family includes the most popular Fusion-style configurations for high-volume OEM programs.

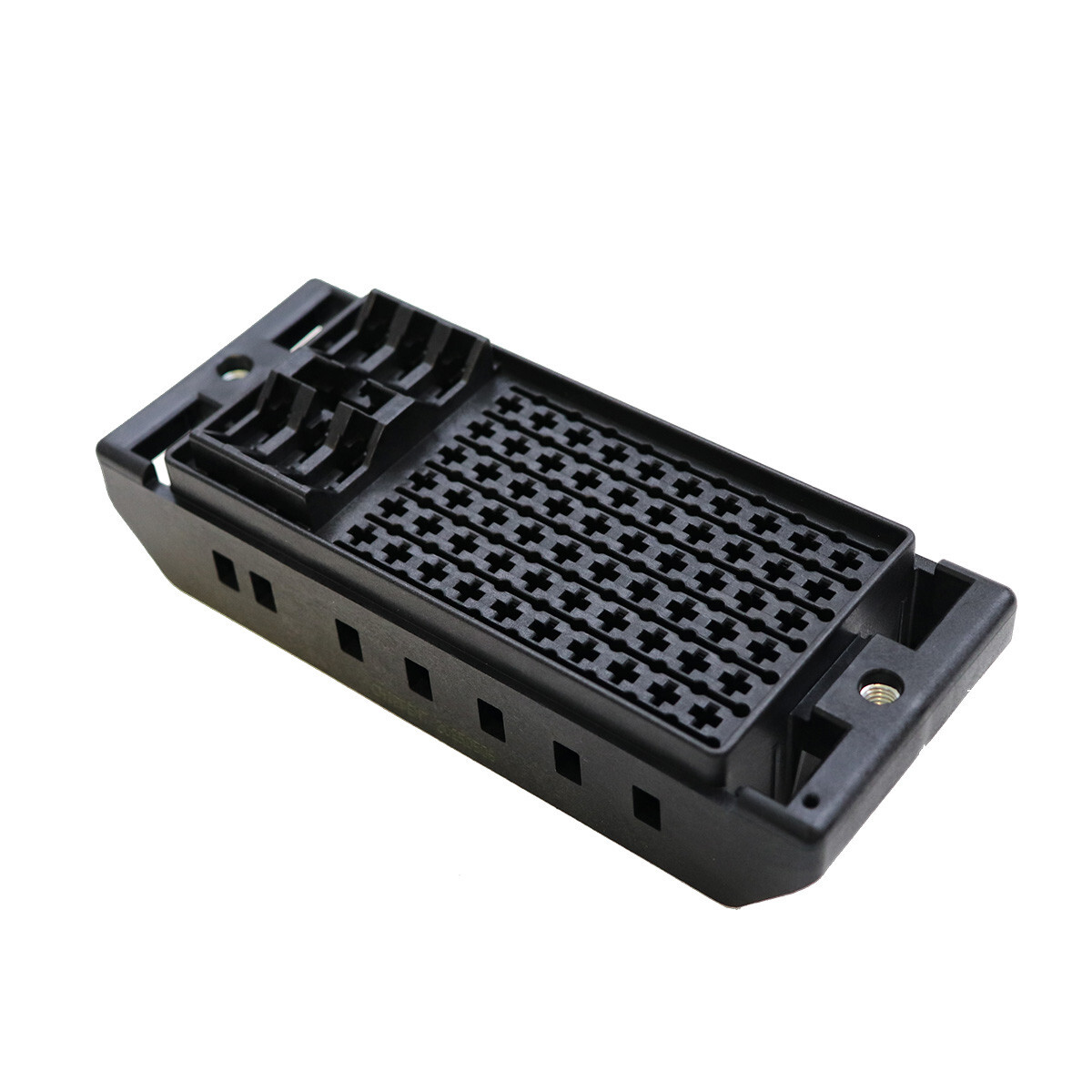

C2179
ATO x 280 x 280 configuration for high-current
sealed OEM power distribution applications.
View Product +

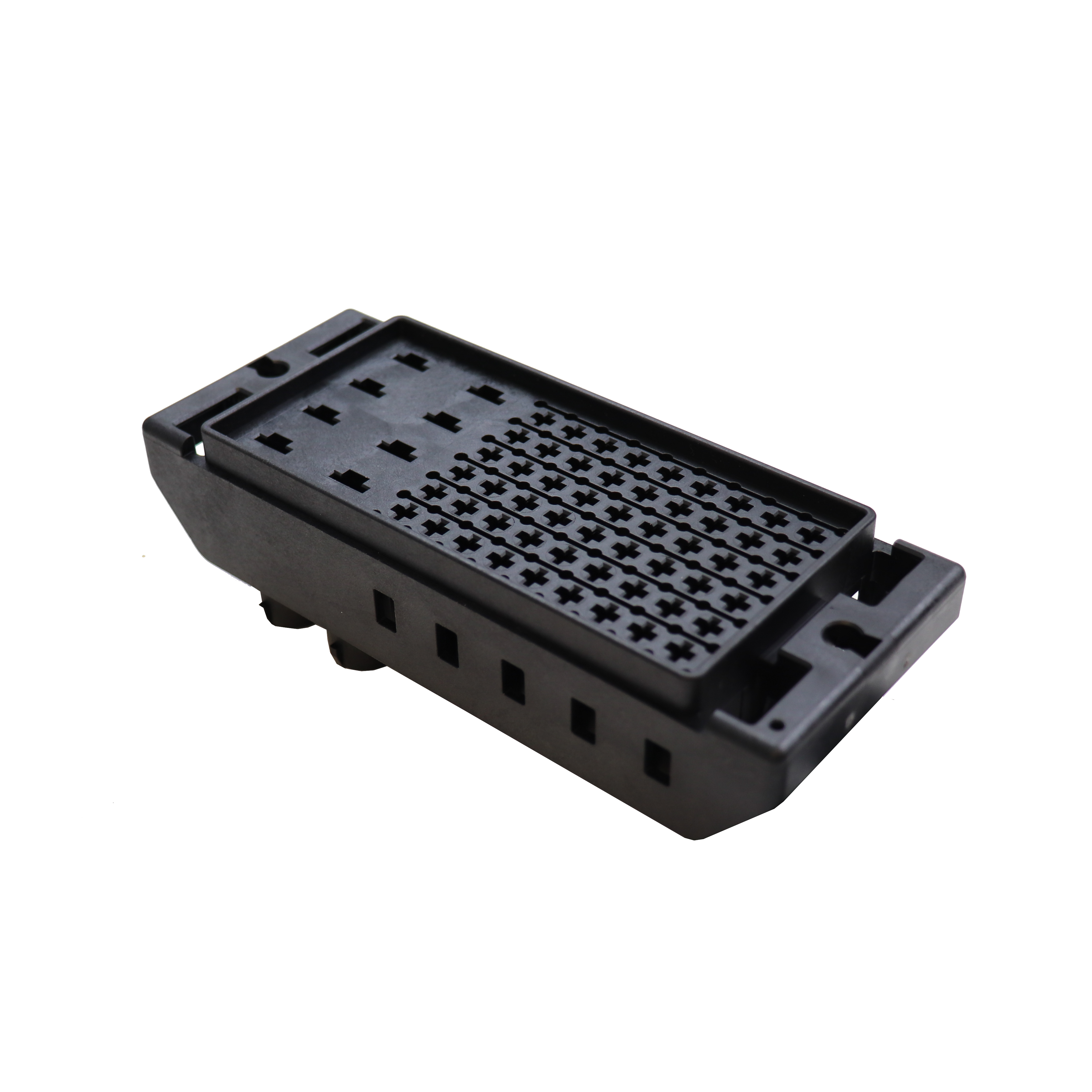

C2570
Single-body BRIC Maxi base with Maxi Fuse support for rugged
sealed power distribution systems.
View Product +

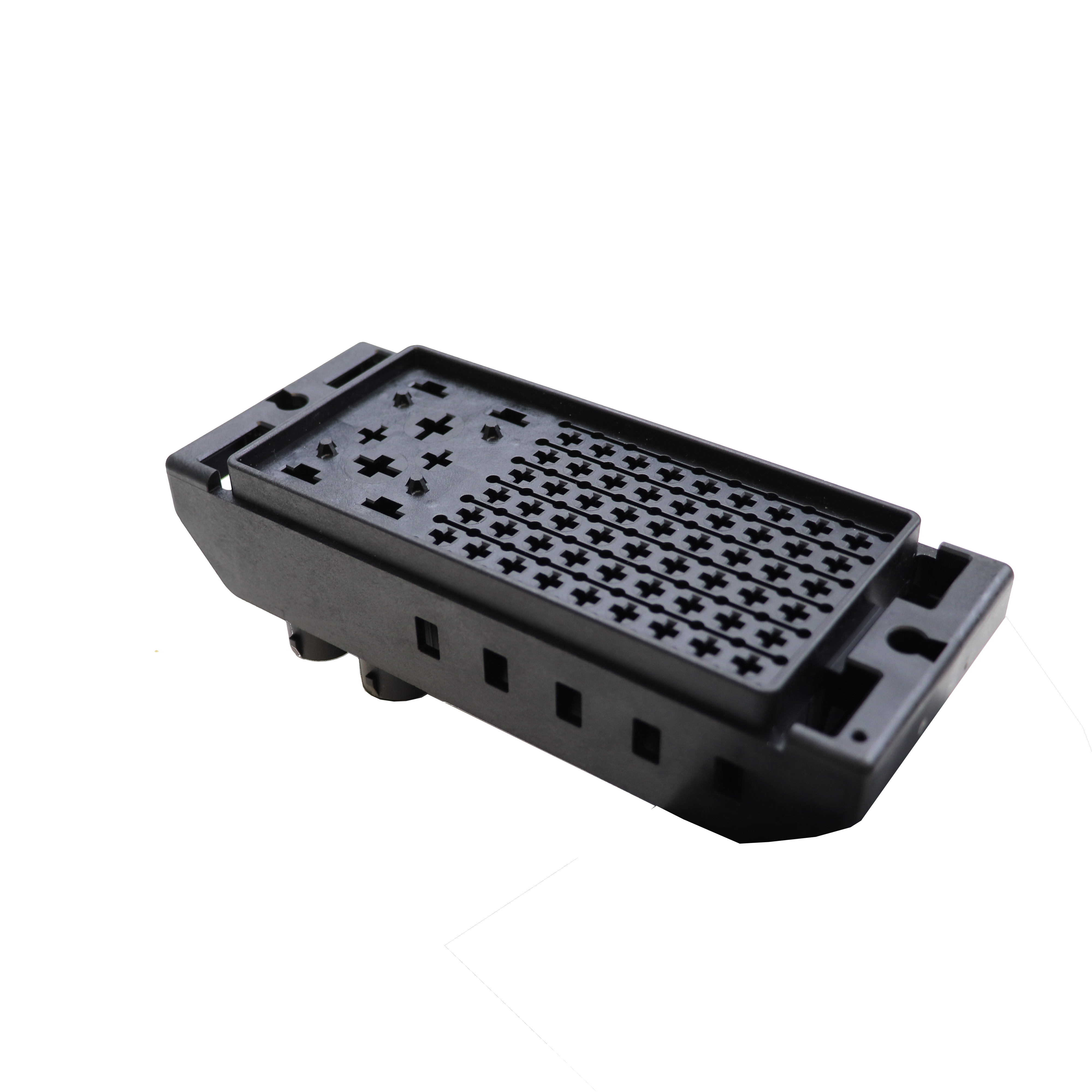

C2571
Single-body BRIC Maxi base with 280 x 280 architecture and
Maxi Combo support.
View Product +
Explore other BRIC families for fixed 280-style layouts, expanded Fusion customization, or compact applications:
BRIC 280 | BRIC Fusion | BRIC miniTechnical Overview
Product Features
- Single-body molded architecture
- Reduced production assembly time versus Fusion
- Based on popular BRIC Fusion configurations
- Compatible with BRIC large cover systems
- Supports CPAs, TPAs, busing, labels, and laser marking
Electrical Specifications
- Supports Maxi Combo, Maxi Fuse, ATO, and 280-style configurations
- TE MCP 2.8, MCP 6.3, MCP 9.5, and Delphi MetriPack options
- 30A intermittent per terminal
- 20A continuous per terminal with temperature derating
- Up to 360A continuous per PDM with vent
Performance Specifications
- IP67 water and dust ingress protection when properly assembled
- M6 steel thread mounting points
- Glass reinforced polyamide body material
- Silicone sealing system
- Designed for rugged OEM power distribution applications

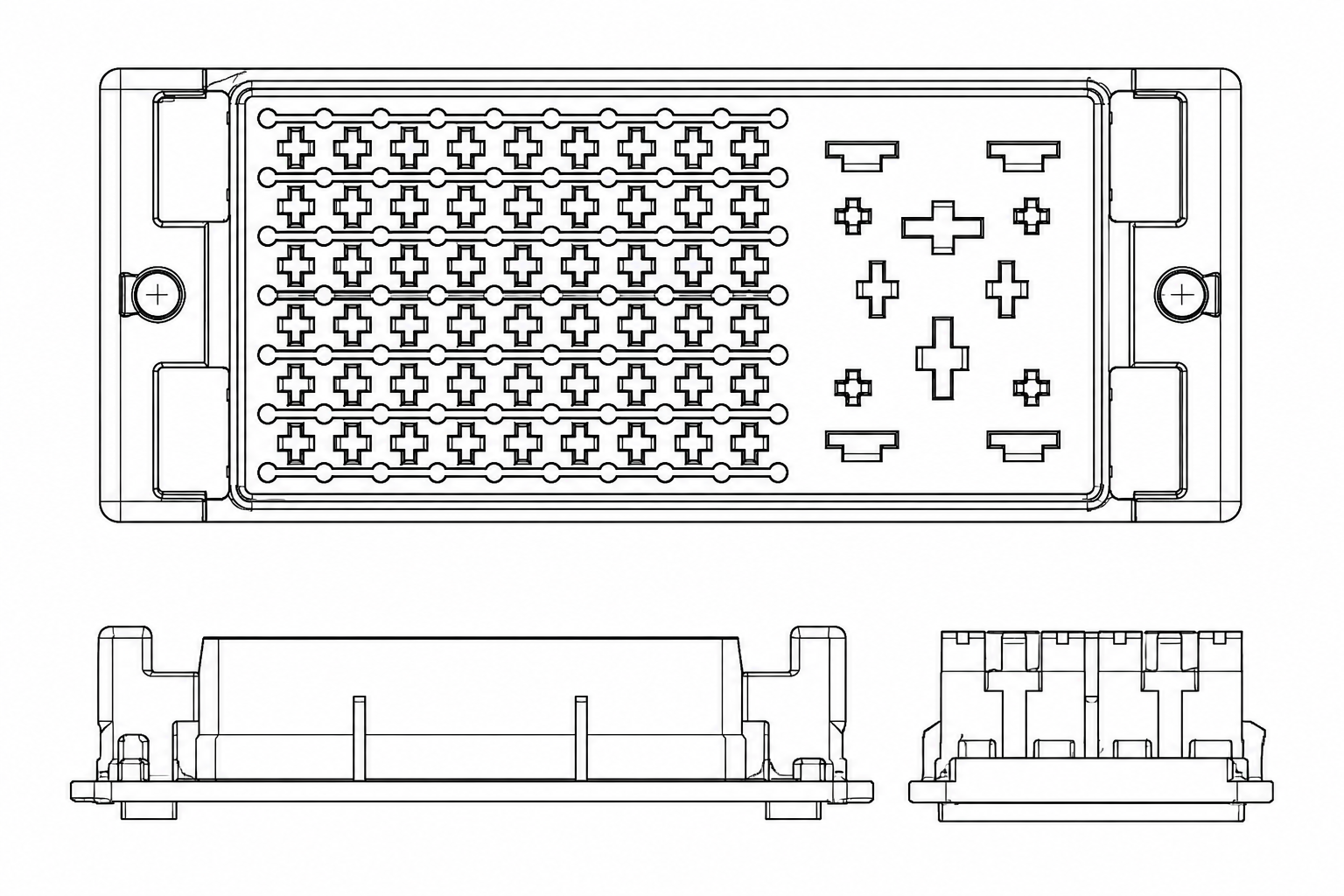

BRIC Maxi Dimensions
| Series | Width | Height | Depth |
|---|---|---|---|
| 84-Way | 155.3 mm | 62 mm | 65 mm |
See It in Action
Resources
Engineering documentation for BRIC Maxi and related BRIC platforms, including application specifications, product catalogs, and drawings.
Frequently Asked Questions
What is BRIC Maxi?
BRIC (Breathable & Robust Interconnection Center) is Chief's family of sealed power distribution modules. BRIC Maxi is the streamlined single-body platform within the BRIC family, designed to reduce production assembly time while supporting popular high-current Fusion-style configurations.
How is BRIC Maxi different from BRIC Fusion?
BRIC Fusion uses modular inserts that are sonic-welded into a sealed base. BRIC Maxi uses a single-body architecture based on popular Fusion layouts, helping reduce assembly time and production complexity.
Which BRIC Maxi bases are available?
Current BRIC Maxi base options include C1179, C2570, and C2571.
What components can BRIC Maxi support?
Depending on configuration, BRIC Maxi supports Maxi Combo, Maxi Fuse, ATO, and 280-style component layouts.
What terminal systems are used?
Depending on configuration, BRIC Maxi can use TE MCP 2.8, TE MCP 6.3, TE MCP 9.5, and Delphi MetriPack 800 terminal systems.
What is the ingress protection rating?
When properly configured with compatible cover, seal, and locking components, BRIC Maxi supports IP67 water and dust ingress protection.
What is the maximum current capacity?
BRIC modules support up to 360A continuous current per PDM with vent and up to 300A continuous current per PDM without vent, with application-specific temperature derating.
What accessories are available?
Accessories include CPAs, TPAs, tethers, labels, laser marking, seals, hydrophobic vents, busing support, and cover options.
