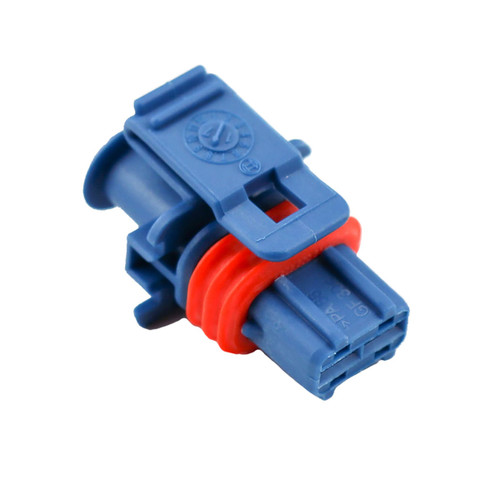

Bosch Blue 2-Way Female Compact Connector, Kompakt 1, Code 1,ROHS
Product information
| Manufacturer: | Bosch |
| Number of Poles: | 2 |
| Color: | Blue |
| Connector Code: | 1 |
| Gender: | Female |
| Sealed: | Yes |
| Overall Dimensions: | 21.2 x 19 x 30.4mm |
| Secondary Locking: | No |
| Blade Width: | 2.8mm |
| Body Material: | PA 66 GF 30 |
| Temperature Rating Range: | -40°C to 150°C |
| Number of Cavities: | 2 |
| Connection System: | Wire-to-Device |
| Primary Locking (Terminal): | Lance-locking |
| Minimum Pitch: | 5mm |
| Vibration Resistance: | Engine / Transmission |
| Vibration Strength: | 25G |
| Terminal Sealing: | Single Wire Seal |
| Type of Seal (Connector): | Radial Seal |
| Type of Seal (Cable): | Single Wire Seal |
| Type of Locking Mechanism (Connector): | Plastic Clip |
| Additional Features: | without protective wall |
| Item Weight (kg): | 0.00286 |
| Group Type: | Low Pin Connectors |
