Automotive Fuses: Challenges in Modern On- and Off-Road Vehicles

What used to be a relatively simple electrical system has evolved into an integrated network of automotive fuses that once powered basic lighting and ignition circuits, but now supports advanced electronics, auxiliary power, LED lighting, electric cooling systems, and high-current accessories. In many older vehicle platforms, a fuse panel may have contained a few dozen circuits. In the modern world, it is not uncommon for a single vehicle to house well over 100 fused circuits.

This change has become more recognizable in off-road, fleet, marine, RV, and specialty vehicle applications where additional accessories are added after the vehicle is manufactured. Winches, inverter systems, refrigeration units, onboard air systems, work lighting, and secondary battery systems all place additional demands on the electrical system.

At Chief Enterprises, we work together with OptiFuse to provide OEM and tier customers with circuit protection solutions designed to withstand tough environments.

Increasing Loads Require Smarter Protection

Today’s vehicles support a wide range of electrical systems that place added strain on wiring and power distribution. As these systems grow and change, manufacturers rely on specialized fuse layouts designed to meet differing requirements. This results in many different types of fuses and applications where they best fit.

Common Fuse Applications by Type

Fuse Type	Typical Applications
Micro2 / Micro3	ECUs, sensors, LED lighting
Mini	Interior electronics, accessory circuits
ATO/ATC	Lighting, wipers, trailer wiring
Maxi	Cooling fans, power distribution
JCASE / MCASE	HVAC, ABS, fuse panel
MIDI / MEGA / ANL	Battery systems, inverters, winches

Compact Electronics Are Driving Smaller Fuse Designs

As the fuse panels become more compact and adhere to tighter packaging requirements, smaller formats such as the Micro2, Micro3, and low-profile mini fuses help designers to increase circuit density and maintain serviceability. These fuse styles are commonly used in body control modules, infotainment systems, sensors, and other electronics where space is limited.

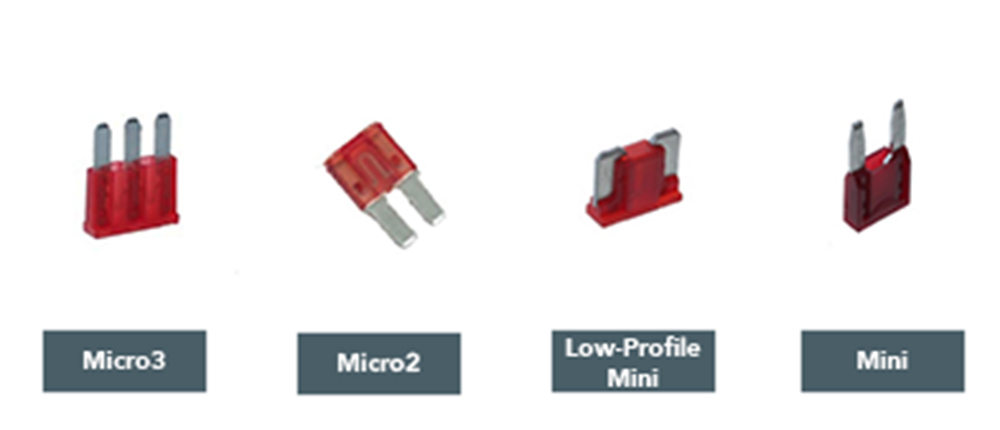

OptiFuse Compact Blade Fuse Offerings

Fuse Type	OptiFuse Series	Amerage Rating
Micro3	ANK	5A-15A
Micro2	ANT	1A-30A
Low-Profile Mini	ANS	3A-30A
Mini	ANM	0.5A-35A

High-Current Systems Continue to Expand

With the need for higher current protection in electrical systems, fuse styles such as Maxi, JCASE, and MCASE fuses are being used more often because of improved thermal performance and handling capabilities.

For battery-level protection and heavy-duty accessories, bolt-on styles such as MIDI, MEGA, and Limiter fuses provide secure mechanical connections in high-vibration environments commonly found in off-road applications.

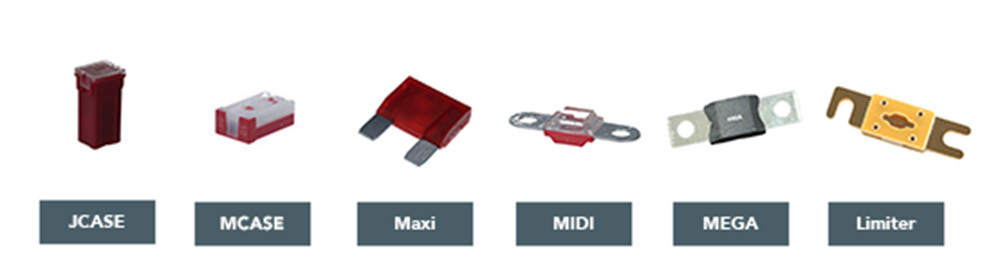

OptiFuse High-Current Fuse Offerings

Fuse Type	OptiFuse Series	Amerage Rating
JCASE	FMX, FMX-LP	20A-60A
MCASE	FMX-M, FMX-MS	15A-60A
Maxi	ANX	20A-120A
MIDI	MIDA	30A-200A
MEGA	MGGA	40A-500A
Limiter	ANE, ANF	35A-800A

Fuse Mounting Solutions

Reliable circuit protection depends not only on the fuse itself, but also on the quality of the installation. In addition to fuses, Chief Enterprises supplies OptiFuse fuse holders, fuse blocks, and power distribution solutions designed for long-term durability and simplified integration across automotive and industrial electrical systems.

Inline fuse holders and multi-circuit fuse blocks help protect accessory circuits while improving power distribution organization. In harsh environments, sealed fuse holders and properly organized electrical systems can improve reliability, simplify troubleshooting, and reduce long-term maintenance issues.

Supporting OEM & Tier Customers

Through Chief Enterprise’s drop-ship fulfillment capabilities, we support OEMs, distributors, fleet operators and upfitter customers with dependable access to fuse solutions for demanding electrical systems from OptiFuse.

We regularly support applications in:

• commercial transportation
• off-road and powersports
• RV and marine
• heavy equipment
• emergency and utility vehicles

Whether customers require compact blade fuses, high-current link fuses, or heavy-duty bolt-on protection solutions, our team helps identify the right products for the application while ensuring fast, reliable delivery. Shop Optifuse products with Chief Enterprises.
